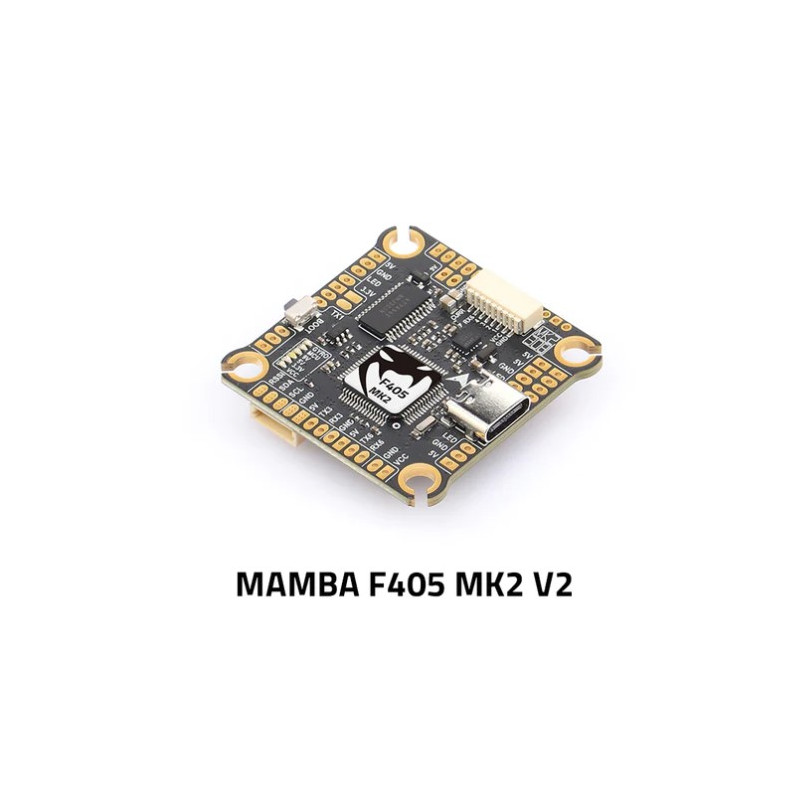

Mamba F405 MK2 V2 Flight Controller (ICM42688) By Diatone

Out of stock
€43.25
View More Info
This product earns you 5 loyalty points.

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Ajouter à la Wishlist
Mamba F405 MK2 V2 Flight Controller (MPU6000) By Diatone - Drone-FPV-racer.com

Other reliable and tested choices

Ce produit est actuellement en rupture, mais pas de panique. Nous vous proposons une sélection d’articles similaires, testés et approuvés, pour répondre aux mêmes besoins et vous permettre de finaliser votre setup sans compromis.

Detailed Description

Diatone F405 MK2 V2 Mamba flight controller with ICM42688 gyro.

Specifications

Video DJI FPV
Video HDZero
Video Analog
Video Walksnail
Video DJI O3
Processor F4
Gyro ICM42688-P
Barometer Without Baro

Specifications

  • MCU: 168MHz STM32F405
  • GYRO: MPU6000
  • Target：FURYF4OSD
  • OSD: Yes
  • Blacbox: 16M Flash Memory
  • Barometer: No
  • Uarts: 3 Set
  • I2C: Yes
  • F.Port: No
  • RSSI: Yes
  • Buzzer Pad: Yes
  • CURR Pad: Yes
  • ESC Signal: 4 Set
  • ESC Soft: Dshot300/600
  • ESC Telemetry: Yes
  • Power Led: Yes
  • LED Controller:BF LED
  • AIR UNIT Port: Yes
  • WIFI: No
  • VTX Switch: No
  • Receiver Protection: Yes
  • BEC Protection: Yes
  • TVS Protection: Yes
  • BEC:3.3V 0.5A& 5V 3A& 9V 3A
  • Input: 3~6S Lipo (12.6~25.2V)
  • Mounting size: 30.5mm/M3

Included

  • 1x Mamba F405 MK2 V2 Flight controller
  • 1x Set of dampers
  • 2x Connection cable
