Manufacturer : Lumenier / Référence : 16222

Lumenier AXII HD 2 Patch Visor 5.8GHz Antenna Combo for DJI FPV Goggles

€78.25
Color : Orange
Color : Green Color : Orange Color : Dark grey
8 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

100% secure payments
Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Caractéristiques techniques

This set of circularly polarized directional antennas are designed to provide long range 5.8GHz video reception in a compact size to DJI FPV Goggles.

This is the combo with two AXII HD 2 patch antennas and two AXII HD 2 micro stubby antennas.

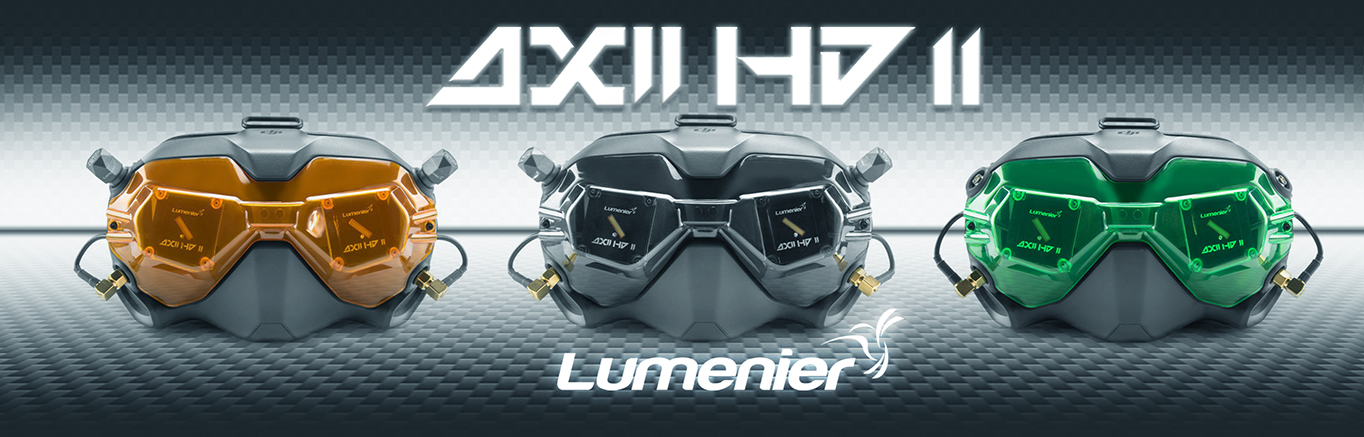

Second version of the AXII HD antennas, the Patch Visor are improved on the one hand on the appearance and on the other hand on the performances. They come in the form of a custom-molded, semi-transparent visor with antennas embedded inside.

Bullet Points

  • Designed for DJI HD Digital FPV Goggles, form fitting
  • Compact low-profile design on your goggles, easy to store and transport
  • High gain directional antennas
  • LHCP Circular Polarization
  • Orange, or Smoke Gray color choices
  • Premium quality and performance
  • Every antenna is QC checked for guaranteed best performance

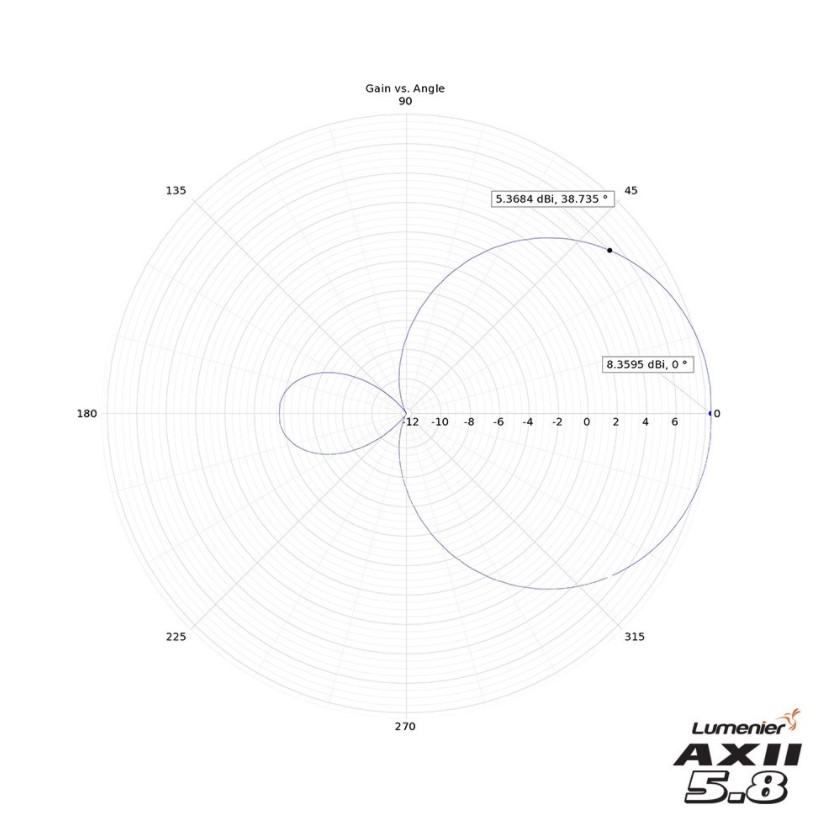

Patch antenna Specifications

  • Frequency: 5.8GHz
  • Bandwidth: 220 Mhz
  • Gain: 8.4  dBiC
  • VSWR: 1:1.1
  • Radiation Efficiency: 95%
  • Beam Width: 76° H. 76° V.
  • Polarization: LHCP
  • Connector: RP-SMA (Fits DJI Goggles directly, not to be used on standard SMA)
  • Weight: 33g

Stubby antenna

  • Gain: 1.9dbic
  • Axial ratio: 1.0 (near perfect)
  • Bandwidth: 5.3GHz-6.2GHz
  • Radiation Efficiency: 99%
  • Cross-Polar Rejection: -15 to -30dB (1.9%)
  • Beam Width: 360 degrees (omni-directional)
  • SWR: <=1.5:1
  • Weight: 3.5g
  • Connector: RP-SMA
  • Works great as both a transmitting or receiving antenna
  • Compatible with other styles of 5.8GHz LHCP antennas
  • Polarization: LHCP

Included

  • 2x Lumenier AXII HD 2 Patch Visor 5.8GHz Antenna
  • 2x Micro AXII HD 2 Stubby antenna

Note : DJI Goggles not included
