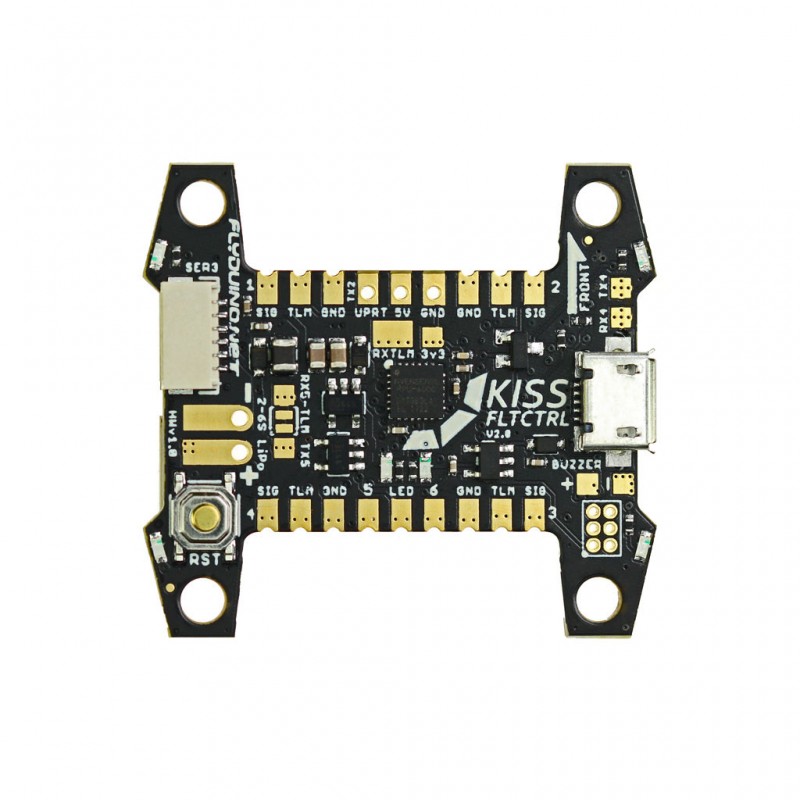

KISS FC V2 - Flight Controller 32bit

Out of stock
€62.42

The Kiss FC V2 flight controller by Flyduino.

View More Info
This product earns you 7 loyalty points.

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Ajouter à la Wishlist
KISS FC V2 - Flight Controller 32bit

Other reliable and tested choices

Ce produit est actuellement en rupture, mais pas de panique. Nous vous proposons une sélection d’articles similaires, testés et approuvés, pour répondre aux mêmes besoins et vous permettre de finaliser votre setup sans compromis.

Detailed Description

Upon receiving your FC,please connect to USB and calibrate before continuing to build and solder to it.

A new simplified Flight controller, the KISS FC V2 includes a complete own Flight Control Firmware development.

The Idea was to get the simple KISS FC to the next level and due to intensive long term tests of some pretty good Pilots we were able to optimize the code to a point where you hopefully get your quad in the air quite quick.

Normally you just need to choose your Airframe in the GUI and you are able to fly (at least with KISS ESC), otherwise you can download presets of well known pilots for given configurations.

And of course you can tweak the PID yourself through the GUI.

kiss fc v2

Specifications

Video Analog
Size 30.5x30.5mm
Processor F4
Gyro MPU6000
Barometer Without Baro

Specifications

  • STM32F722RET6 MCU, ARM-Cortex M7 with FPU running at 216Mhz
  • MPU6000 Gyro and ACC Sensor
  • Integrated DCDC converter for direct LiPo battery input (2-6S 6-30V) max 500mA on 5V
  • The first four ESC outputs are amplifyed to 5V Signal with very fast drivers (for a clear Dshot signal)
  • CP2102 USB-UART USB controller for simpler updates with the KISS Bootloader
  • MCU: STM32F722RET6 @216Mhz
  • Weight: 5g
  • Mounting Holes: 3x3cm pattern with 3.3mm holes (compatible with most frame types
  • Voltage: 2-6S (direct)
  • Now supports up to 7 AUX channels

Download

MANUEL (EN)

FIRMWARE

Included

  • 1x KISS FC V2 - Flight Controller 32bit
