Manufacturer : Iflight / Référence : OM15316

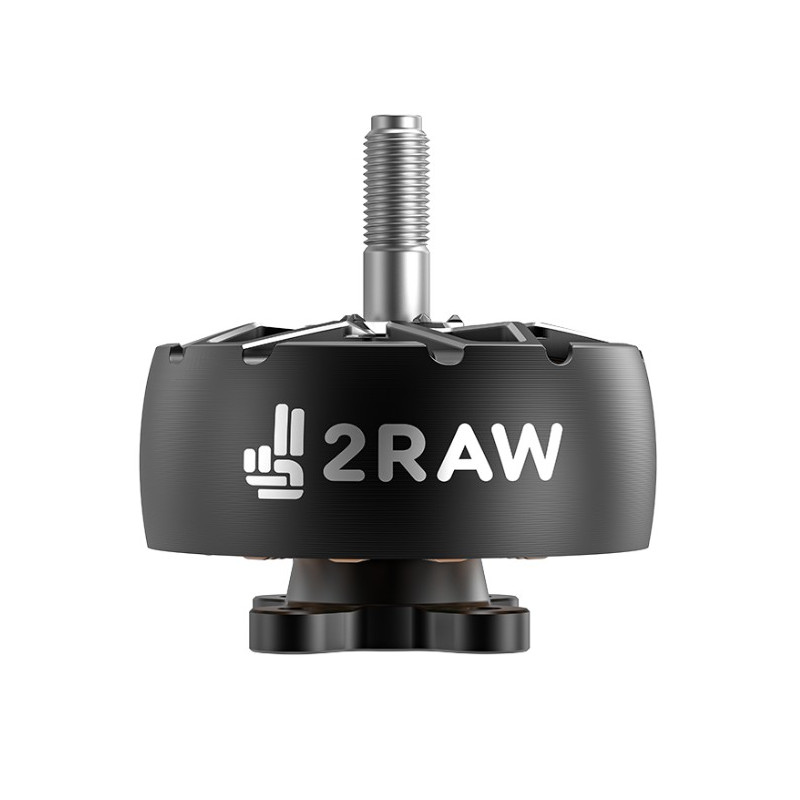

Helion 3110 - 900KV Motor By Iflight

En stock
€55.90
Same day shipping

6 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Related products

Technical characteristics

This XING2 3110 900KV motor is designed for the Iflight Helion 10" drone.

Composed of a 5mm shaft nut, this motor is perfectly suited for 10" propellers. However, you can also use 7, 8, or 9" propellers.

This XING2 is mounted in a 19x19mm configuration and has a maximum power of 2143.8W!

Specifications

  • KV: 900KV
  • Weight(included wire): 77g
  • Dimension: φ38.72*24.6mm
  • Interphase Resistance: 78mΩ
  • Input Volts: 33.6V
  • Peak Current: 65.54A
  • Max Watt: 2143.8W
  • Mounting Holes: 19*19 φ3mm
  • Rotor Specifications: Unibell
  • Shaft Diameter: 5mm
  • Shaft Protruding Length: 15mm
  • Lead: 260mm/18AWG
  • Magnet: N52H Curved
  • Configuration: 12N14P
  • Bearing Type: NSK
  • Bearing Specification: φ11*φ5*5
  • Winding: Single Strand copper winding

Included

  • 1x Helion 10 3110 motor
  • 1x Set of screws
  • 1x Nut
