Manufacturer : Foxeer / Référence : MR1864

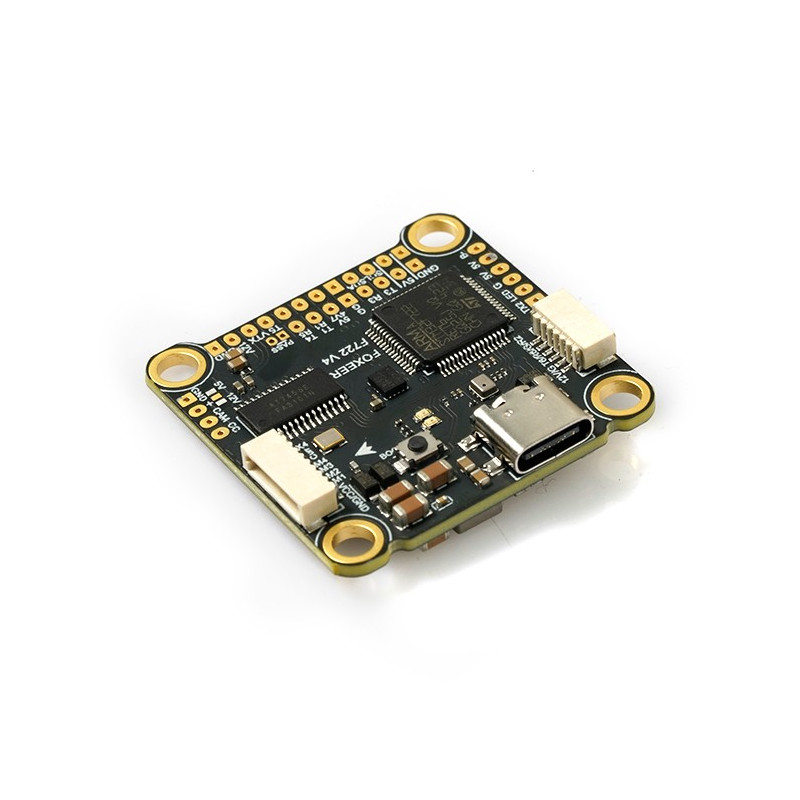

F722 V4 ICM42688 Flight Controller By Foxeer

En stock
€52.90
Same Day Shipping

6 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Related products

Technical characteristics

The Foxeer F722V4 ICM42688 is ideal for FPV pilots looking for robustness, flexibility, and power in a compact form factor. It excels in freestyle, racing, and advanced builds requiring OSD integration, telemetry, or altitude assist.

With a 30.5x30.5mm mounting, this flight controller supports 4-6S voltages and features a 16M blackbox, a DPS310 barometer, and a 5V/3A;12V/3A BEC.

Specifications

  • CPU : STM32F722RET6
  • Gyro : ICM42688
  • Barometer : DPS310
  • Power Supply : 4~6S Lipo
  • BEC Output : DC5V/3A; DC12V/3A
  • OSD : BF OSD
  • Black Box : 16M Flash Memory
  • UART : 5 Sets
  • ESC Telemetry : RX4
  • Buzzer : YES
  • Smart Audio : YES
  • LED : 1 Set 2812 LED
  • USB : Type-C

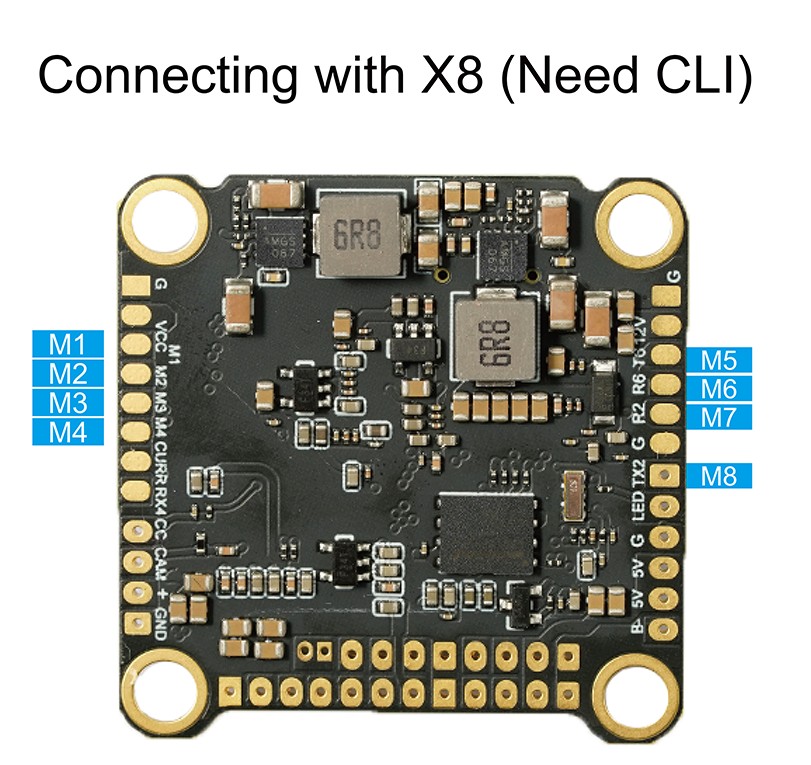

  • X8 : Supported Need CLI
  • Firmware : BetaFlight:FOXEERF722V4
  • Size : 37X37mm
  • Mounting Hole : 30.5X30.5mm,Φ4mm
  • Weight(g) : 8g
  • Working Temperature : -20℃ ~ +55℃
  • Working Humidity : 20～95%
  • Storage Temperature : -20℃ ~ +70℃

Included

  • 1x F722 V4 FC
  • 4x Rubber
