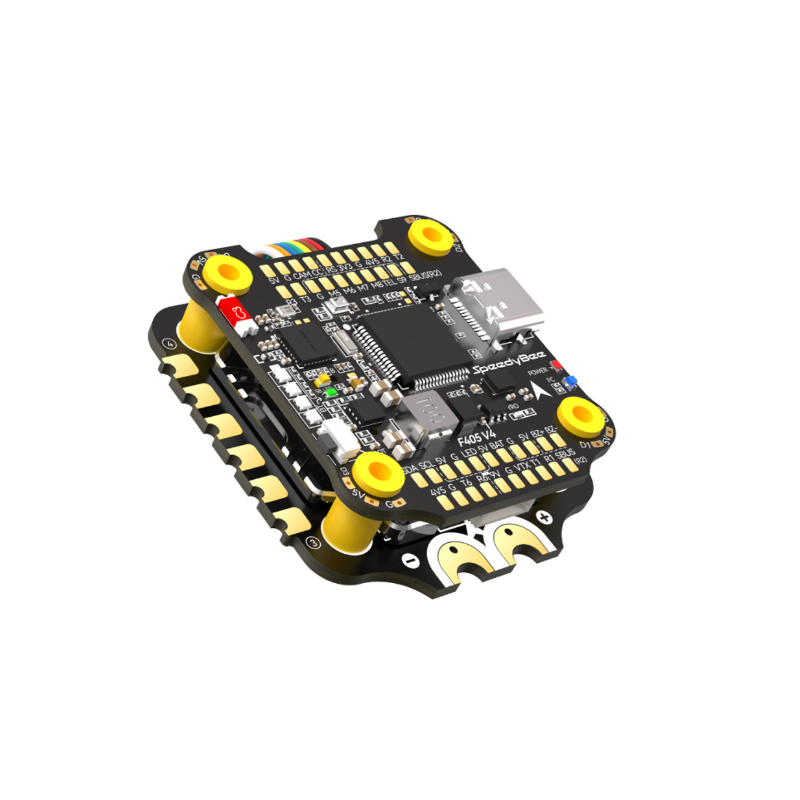

F405 V4 BLS 55A 30x30 Stack By SpeedyBee
Related accessories
Technical characteristics
The fourth version of the SpeedyBee stack includes an FC F405 and a BLHeli_S 55A ESC. The 30x30mm stack can support up to eight motors, is configured via Bluetooth, has a bult-in barometer as well as an ICM42688P gyro.
The SpeedyBee F405 V4 stack is both complete and inexpensive, all with good performance.
Always equipped with a Bluetooth controller allowing settings via the mobile application, the stack also has a TVS diode protecting the electronics.
Integrated LEDs indicate the battery charge level and 2 3A BECs provide a 5V and 9V power supply.

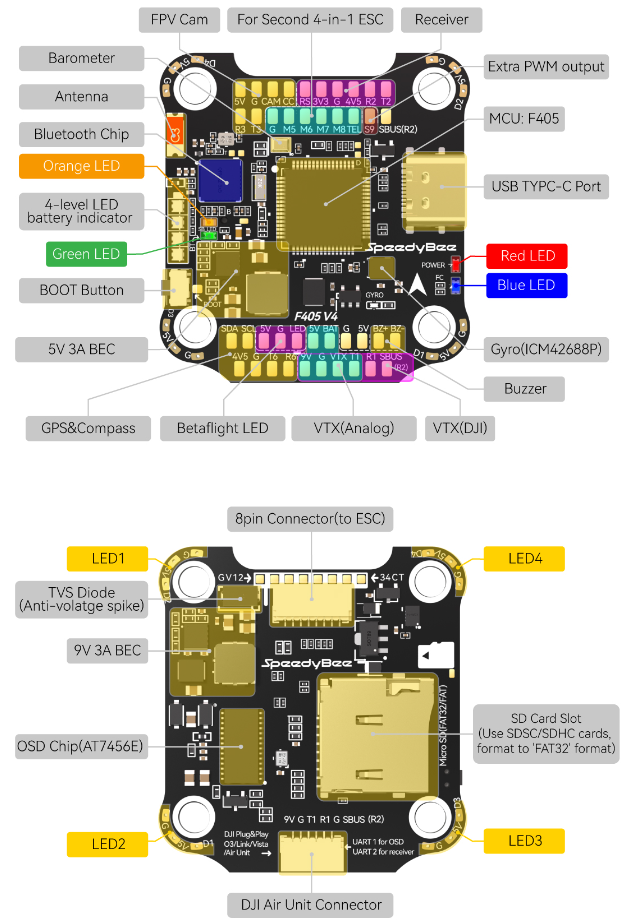

FC
- MCU : STM32F405
- IMU(Gyro) : ICM42688P
- USB Port Type : Type-C
- Barometer : Built-in
- OSD Chip : AT7456E chip
- BLE Bluetooth : Supported.
- WIFI : Not supported

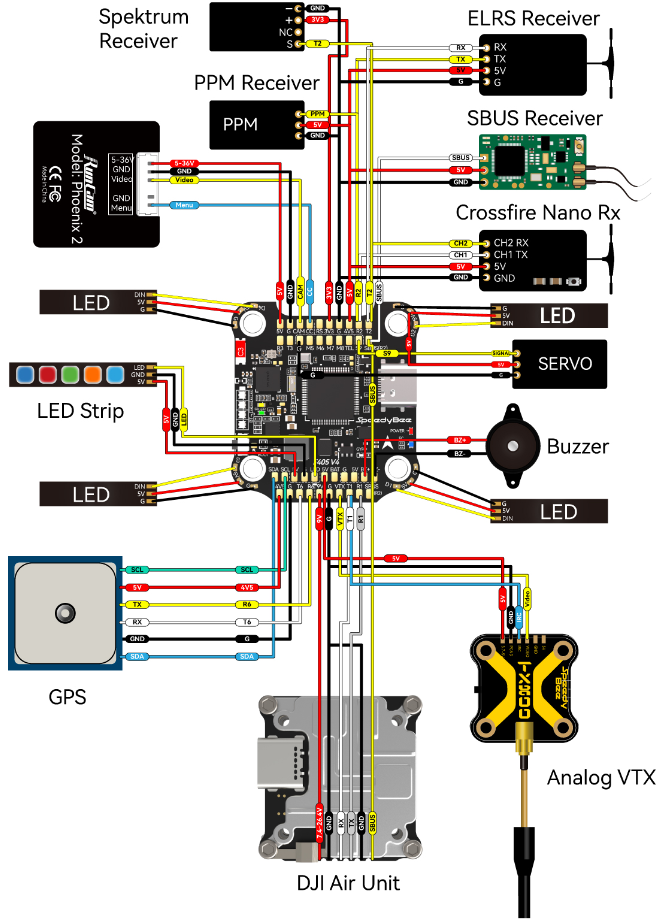

- Compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit
- ESC Signal : M1 - M4 on bottom side and M5-M8 on front side.
- UART : 6 sets(UART1, UART2, UART3, UART4(Dedicated for Bluetooth connection)), UART5(Dedicated for ESC telemetry),UART6
- ESC Telemetry : UART R5(UART5)
- I2C Supported.
- Traditional Betaflight LED Pad : Supported. 5V, G and LED pads on bottom of the front side. Used for WS2812 LED controlled by Betaflight firmware.
- Buzzer : BZ+ and BZ- pad used for 5V Buzzer
- Power Input : 3S - 6S Lipo
- RSSI Input : Supported.
- Smart Port / F.Port : Not supported
- Firmware Target Name : SPEEDYBEEF405V4
- Mounting : 30.5 x 30.5mm( 4mm hole diameter)
- Dimension : 41.6(L) x 39.4(W) x 7.8(H)mm
- Weight : 10.5g

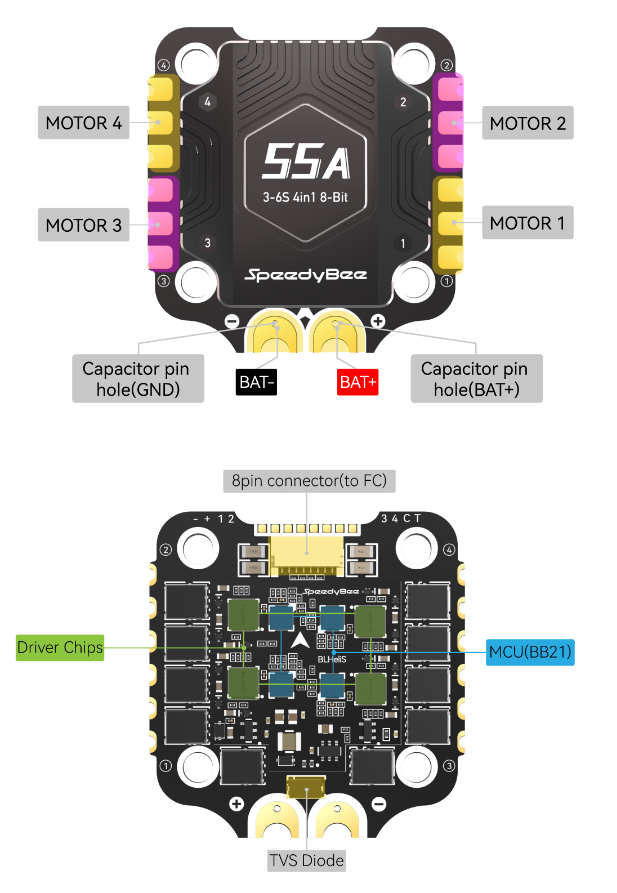

ESC
- Firmware : BLHeli_S J-H-40
- Wireless Configuration : Full Configuration Supported in the SpeedyBee app
- Continuous Current : 55A * 4
- Burst Current : 70A(5seconds)
- TVS Protective diode : Yes
- External Capacitor : 1000uF Low ESR Capacitor(In the package)
- ESC Protocol : DSHOT300/600
- Power Input : 3-6S LiPo
- Power Output : VBAT
- Current Sensor : Support (Scale=386 Offset=0)
- ESC Telemetry : Not supported
- Mounting : 30.5 x 30.5mm( 4mm hole diameter)
- Dimension : 45.6(L) * 44(W) * 8mm(H)
- Weight : ~23.5g
Included
- 1x F405 V4 FC
- 1x BLS 50A 4in1 ESC
- 1x 35V 1000uF Capacitor
- 5x M3 nylon nut
- 5x M3 silicone o-ring
- 5x M3*8mm grommet
- 5x M3*8.1mm grommet
- 1x Sh 1.0mm 15mm 8pin cable
- 1x Sh 1.0mm 75mm 8pin cable
- 5x M3*30 screw
- 1x DJI 6pin cable
- 1x XT60 power cable (70mm)
