DarkStar22 DJI O4 Pro HD 3S BNF/DJI By GEPRC
Related accessories
Technical characteristics

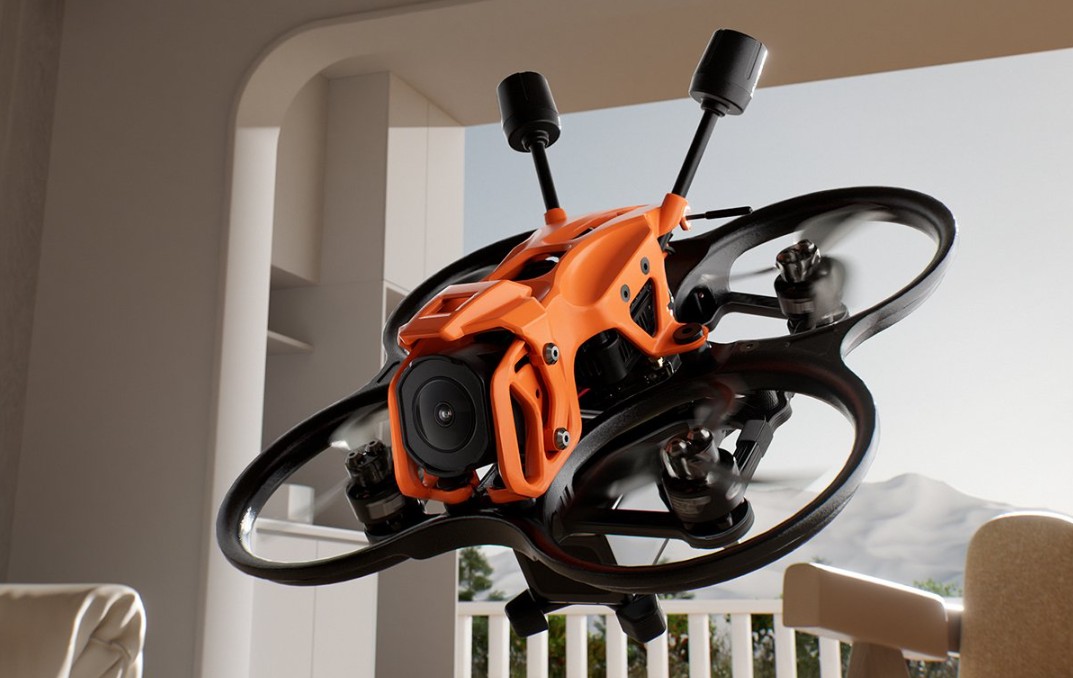

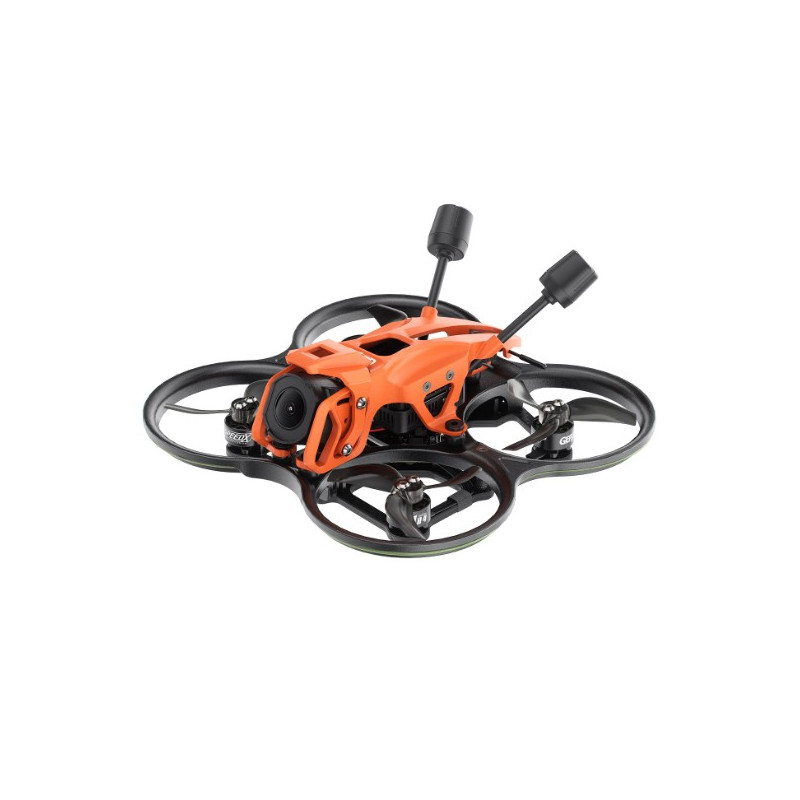

The GEPRC DarkStar22 embodies a perfect balance between performance and compactness, designed for the world of cinewhoops. Thanks to its DJI O4 Pro system with ultra-low-latency HD video transmission, it delivers clear and stable footage both indoors and outdoors.
The frame features an innovative five-point mounting design with a damped suspension system that stabilizes the O4 Pro camera, ensuring smooth image capture in all conditions.
Equipped with SPEEDX2 1104 7500KV motors and HQProp 2219-3 propellers, the DarkStar22 offers remarkable vigor while maintaining an excellent balance between power and flight time. Its reinforced frame, with a thicker canopy and integrated propeller guards, allows it to handle complex environments with confidence — perfect for both indoor and outdoor flying.
Despite its compact size (100 mm wheelbase), it includes a dedicated GPS mount, providing advanced functionality and enhanced safety for outdoor flights. For ease of use, its simplified structure—requiring only four screws for disassembly—ensures quick maintenance and a more convenient experience.
In summary, the DarkStar22 O4 Pro stands out as a top choice for cinematic FPV enthusiasts seeking a highly integrated, durable, high-performance, and easy-to-use cinewhoop.
This BNF consists of a the DJI O4 Pro air unit, a TAKER F405 20A AIO, SPEEDX2 1104 7500KV motors and 2219 three-blade propellers.

Specifications
- Frame: GEP-DS22
- Main Carbon Plate Thickness: 2.5mm
- Wheelbase: 100mm
- FC System: TAKER F405 20A ELRS2.4 2-4S AIO
- MCU: STM32F405
- Gyro: ICM42688-P
- FC Firmware: GEPRC_TAKER_F405 AIO
- Flash: 16MB
- ESC: 8Bit 20A
- Motor: SPEEDX2 1104 7500KV
- Propellers: HQProp 2219-3
- Power Connector: XT30U-M
- VTX: DJI O4 Air Unit Pro
- Camera: DJI O4 Air Unit Pro camera module
- Antenna: DJI O4 Air Unit Pro antenna
- Receiver: No
- Recommended Battery: GEPRC Storm LiHV 3S 720mAh
- Flight Time: 6min45s (tested under smooth cruising; actual flight time depends on flight style)
Included
- 1x DarkStar22 Drone
- 1x Prop Guard
- 1x Top Plate
- 1x Camera Cover
- 1x Battery Pad
- 2x Propellers (pairs)
- 1x 10*120mm Battery Strap
- 1x L-shaped Hex Wrench 1.5mm
- 1x Battery Anti-slip Pad
- 1x Damping Ball Punch Tool
- 1x Binding Pin
- 1x USB Adapter Board
- 1x 5P Terminal Cable
- 1x Hardware set
