Manufacturer : AOS RC / Référence : *FF14408

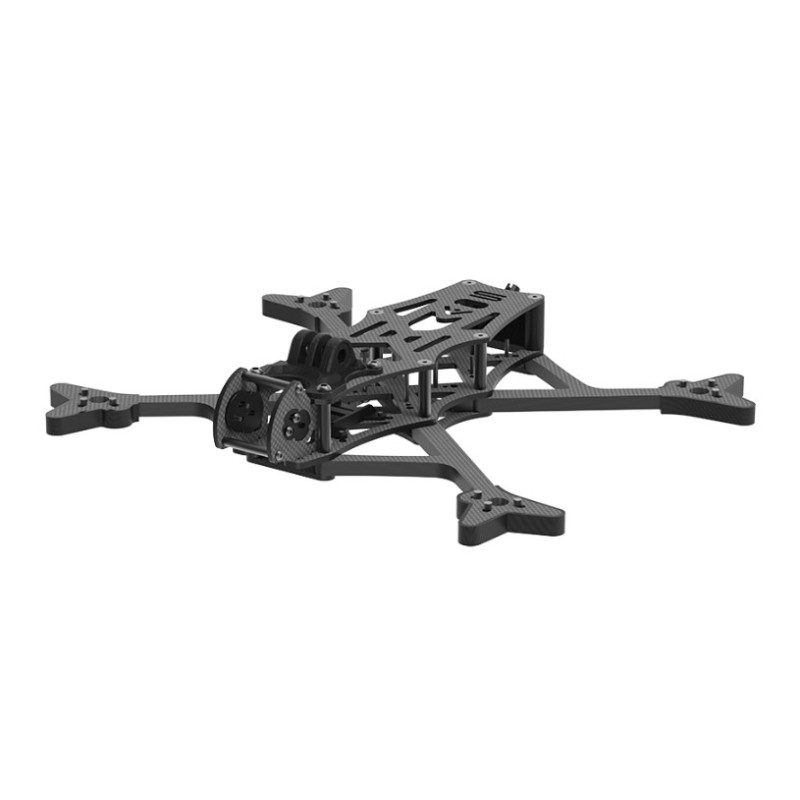

AOS 5.5" EVO V1.2 Frame Kit By Iflight

Hors stock
€93.90
Out-of-Stock Notify me when the product is available again

10 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Related products

Technical characteristics

Built to go toe to toe with 5" Freestyle quads whilst weighing under 250g, the AOS 5.5 EVO V1.2 by Iflight has been updated to be compatible with the new DJI O3 Air Unit to support the DJI O3 ND filters. The camera cage and arms have been reinforced to improve durability.

As with all AOS frames exceptional vibration and resonance performance is guaranteed, eliminating IMU resonance issues with O3 image stabilisation.

The frame have been updated with silicone dampers and XT30 mounting hardpoints.

Bullet points

  • Approx. 123g with all hardware
  • Designed for up to 5.5 inch props
  • 235mm wheelbase
  • 6mm Arms
  • 30.5x30.5mm, 25.5x25.5 or 20x20 mm stack mountings in the front, centre and rear.
  • Fits the DJI O3 Air Unit, Caddx Vista or HDZero freestyle VTX perfectly
  • Fits both 20mm (DJI and O3 camera) and 19mm (Micro sized) cameras
  • Motor mounting 16x16 up to 19x19
  • Standoffs, frame and screws included

Specifications

  • Frame wheelbase: 237mm
  • Frame Dimension: L188*W145*H32.5mm
  • Arm Thickness: 6mm
  • Top Plate Thickness: 2mm
  • Bottom Plate Thickness: 2.5mm
  • Upper Plate Thickness: 2mm
  • Motor Mounting: 16x16mm
  • VTX Mounting: 20*20/Φ2mm / 25.5*25.5/Φ2mm
  • Weight : 194g

Included

  • 1x AOS 5.5 EVO V1.2 Frame Kit
  • 1x TPU Parts
  • 4x Motor Wire Shield Tube
  • 1x Screw Bag
  • 2x Battery Strap
