Manufacturer : Radiomaster / Référence : HP0157-0112-SET

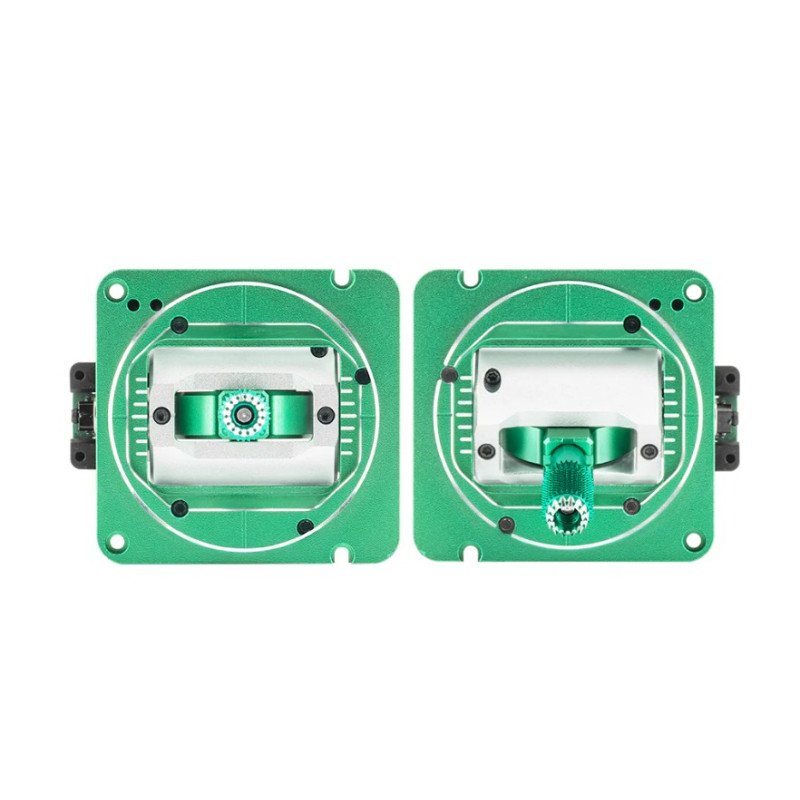

AG02 Full CNC Hall Gimbal for TX15 & TX16S & Boxer - Set Version (2pcs) By RadioMaster
En stock
€99.00
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
The AG02 gimbals from RadioMaster are crafted with high-precision from machined aluminum, featuring adjustable travel on both the vertical and horizontal axes for responsive and customizable control.
A redesigned, lightweight structure reduces rotational inertia by 21.6% compared to the previous generation, enabling smoother and faster stick movement for enhanced responsiveness.
Equipped with advanced Hall effect sensors, the AG02 delivers low-noise operation, rapid response, and exceptional accuracy.

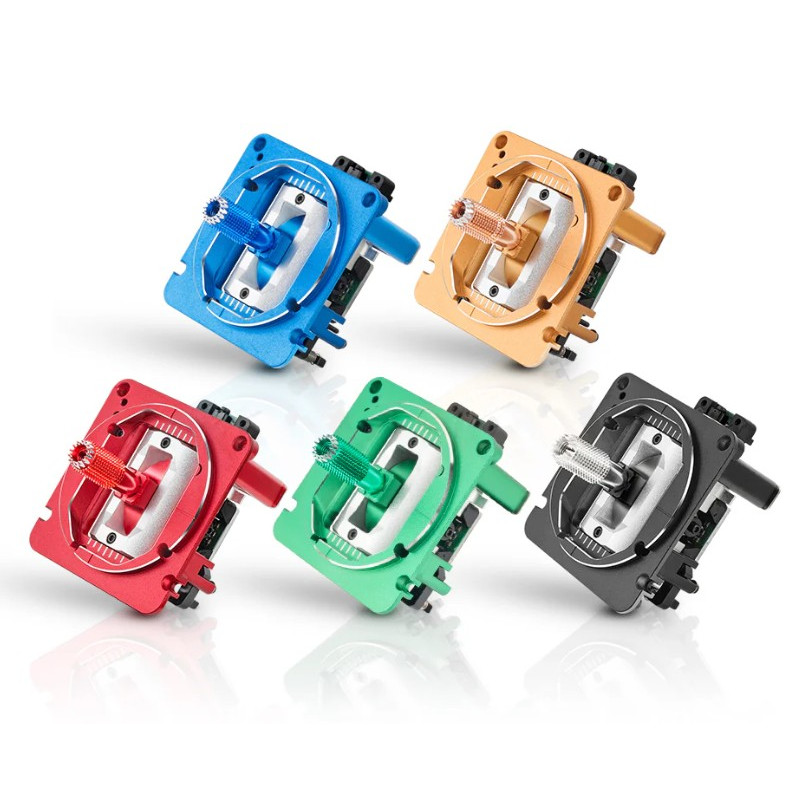

The anodized aluminum finish, available in Black, Red, Blue, Green, or Gold, ensures both durability and a professional, refined look.
The mounting system is fully compatible with AG01 gimbals, making for an easy upgrade path.
Specifications
- Sensor Type: Hall Analog
- Operating Voltage: DC 3.3V
- X-Axis Travel Adjustment Range: 30° – 56°
- Y-Axis Travel Adjustment Range: 38° – 54°
- Throttle Mode Switch (Mode 1/2) Without Disassembly: Supported
- Spring Tension Adjustment Without Disassembly: Supported
- Quad Ball Bearings: Yes
- Operating Temperature Range: -20°C to +85°C
- Dimensions (Excluding Stick Ends): 53 × 53 × 33.3 mm
- Weight: 73 g ± 1 g (per unit)
- Gimbal Sticks: M4
Bullet points
- All-aluminum construction
- Smooth and responsive control
- Low-noise Hall sensor
- Vertical and horizontal axis adjustment for perfect feel
- Precision bearings
- Compatible with TX15, TX16S, and Boxer radios
Included
- 1x AG02 CNC Hall Gimbal (Centering)
- 2x High Tension Springs
- 1x GH1.25-SH1.25 adapter board (Boxer/TX16sMKII)
- 4x PB2.3*10 Mounting Screws
- 1x Hex Wrench
- 1x User Manual
AG02 Full CNC Hall Gimbal for TX15 & TX16S & Boxer - Set Version (2pcs) By RadioMaster
En stock
€99.00
