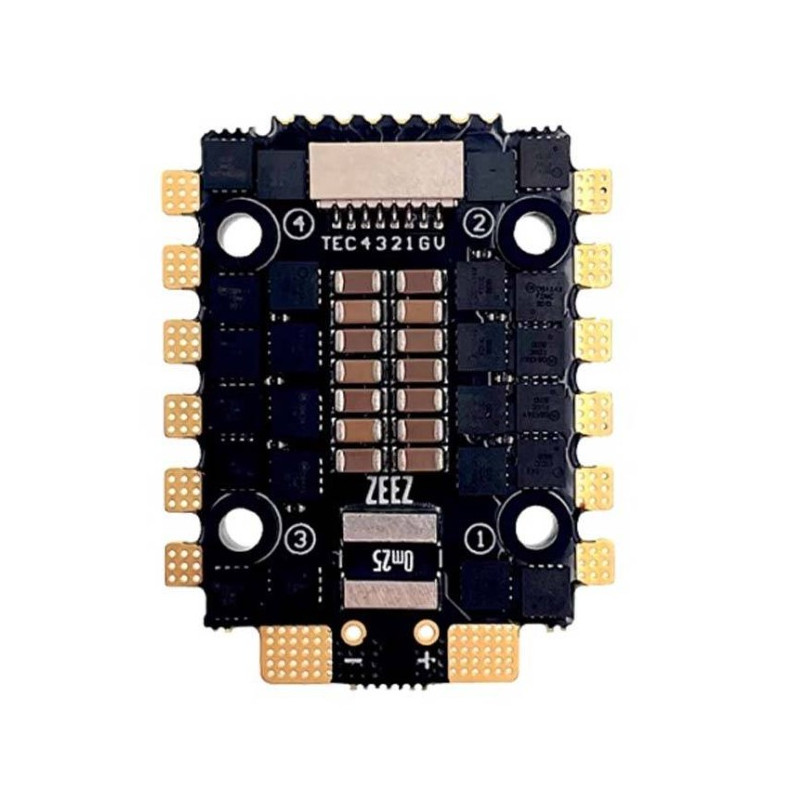

4in1 45A 2020 V3 ESC By Zeez

Out of stock
€74.92

View More Info
This product earns you 8 loyalty points.

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Ajouter à la Wishlist
4in1 45A 2020 V3 ESC By Zeez - Drone-fpv-racer.com

Other reliable and tested choices

Ce produit est actuellement en rupture, mais pas de panique. Nous vous proposons une sélection d’articles similaires, testés et approuvés, pour répondre aux mêmes besoins et vous permettre de finaliser votre setup sans compromis.

Detailed Description

Zeez's 45A 20x20 V3 ESC features the fastest MCU available, the STM32G0.

It supports bi-directional DSHOT, digital protocols as well as all analog protocols (PWM, OneShot125, OneShot42, Multishot).

Also, the soldering pads have been improved by having more space, which will make your soldering easier.

Specifications

Size 20x20mm
Amp 45A
Type 4in1
Voltage 6S
ESC Firmware BLHeli_32

Specifications

  • LiPo Power input: 3S-6S
  • Continuous Current: 45Ax4
  • Burst Current: 55Ax4
  • Input wires: 14AWG-130mm* (Red/Black)
  • Output Wire: solder pads and 8P connector
  • High-Quality MOSFET 30V rated with RDS(on) 1.3 mΩ
  • Mounting holes: 20x20mm
  • ESC Firmware: BLHeliSuite32
  • Firmware: BLHeli_32
  • Current Sensor Scale: 250

Included

  • 1x Zeez RC 45A BLHeli_32 2020 4-In-1 ESC V3
  • 4x Aluminum Standoff
  • 1x ESC to Flight Controller 8 Pin to Servo Connector JST SH 1mm Connector
  • 2x 470uF 35V Low ESR Capacitor
  • 1x XT60 with 12AWG Silicon Cable for Battery Connection
