Technical characteristics

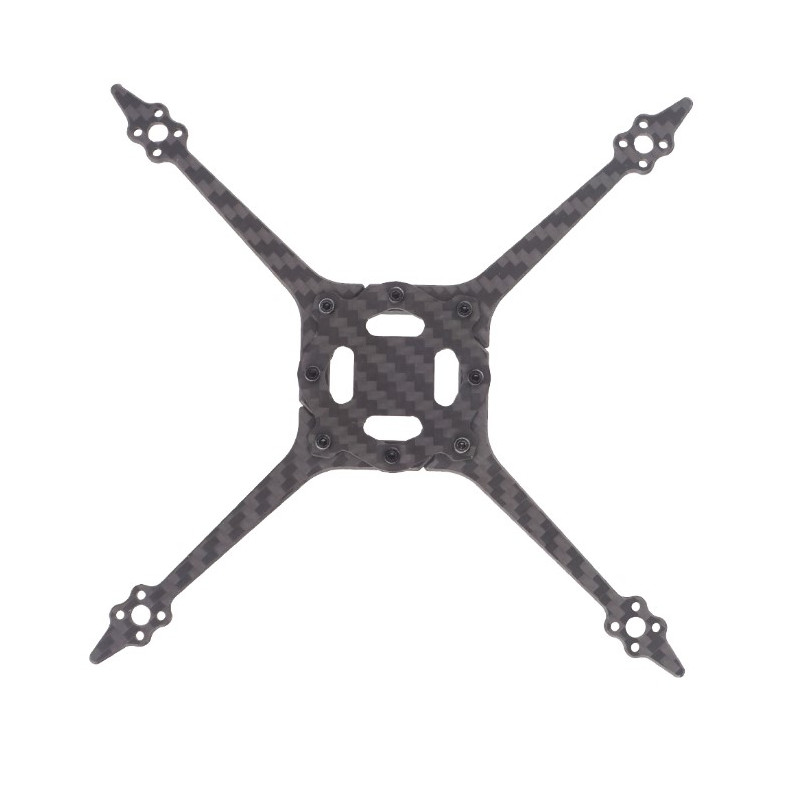

This 3.5" frame from TuneRC is specially designed for lightweight, quiet and agile toothpick builds.

Weighing only 18.6g with 4 arms, 2 plates and hardware, it is compatible with AIO boards that mount in 25.5*25.5mm and motors with a 9*9mm mounting pattern.

The separate arm design makes it easy to maintain, plus a dedicated space is reserved to pass the battery strap through the frame so that the build looks cleaner.

Finally, a bracket allows you to install a DJI O3 air unit.

Specifications

  • Diagonal Length: 154mm
  • Arm Thickness: 3mm
  • Middle Plates Thickness: 1.5mm
  • Weight: 15g (4* frame arms+ 1* top plates+ 1* bottom plates)
  • AIO mounting pattern: 25.4mm x 25.4mm
  • Motor mounting pattern: 9mm x 9mm
  • Arms are well chamfered

Included

  • 4x Arm
  • 1x Top plate
  • 1x Bottom plate
  • 1x Battery strap (suitable for 3s 450mah battery)
  • 4x M2x8 socket head cap screw
  • 4x M2x18 socket head cap screw
  • 8x M2 nut
