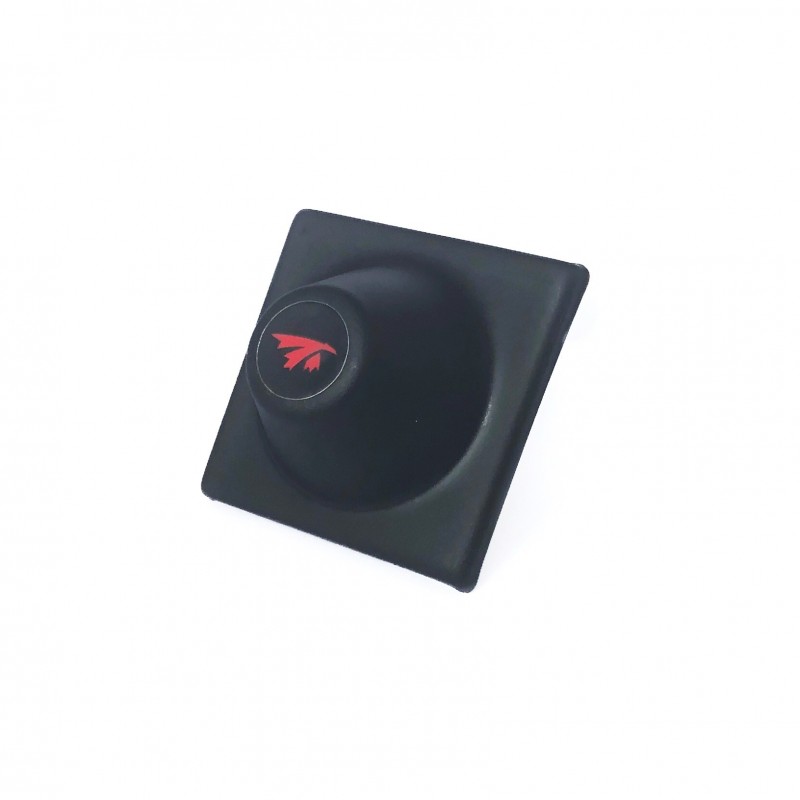

TrueRC Sniper 5.8 Antenna - RHCP
Leading the way in antennas technologies for FPV, TrueRC has developed the “Sniper”.
By buying this product you can collect up to 5 loyalty points. Your cart will total 5 loyalty points that can be converted into a voucher of 1,00 €.
Produit indisponible pour le moment Warning: Last items in stock!
Degressive Shipping Costs
Same day shipping for orders placed before 3:30 pm (Monday to Friday)
Leading the way in antennas technologies for FPV, TrueRC has developed the “Sniper” antenna. It consists of modifying a X-AIR to add a set of director elements. Same principle you find in a yagi, but keeping the circular properties, add an extra dimension to the equation. In terms, the director elements act as a “lens” and raises gain by 3.5dB to reach 13.5dBi on a single antenna.Include a low-loss semi-flexible extension for easy positioning.
- Frequency: 5.6-5.95GHz
- Gain: 13.5 dBic
- Axial Ratio: 0.9 (excellent)
- Beam-width*: 80deg
- Beam-width @-3dB**: 45deg.
- Connector: SMA
- Dimensions: 3.6″x3.6″x2.5″
*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.
