Manufacturer : BETAFPV / Référence : 01070022_1

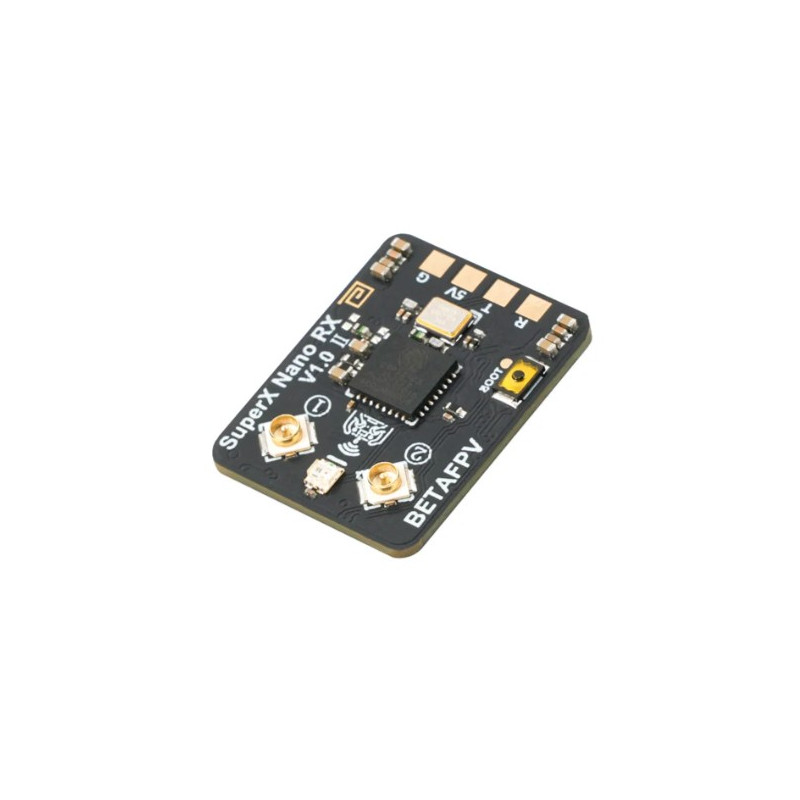

SuperX ELRS 2.4G + 915M Gemini Nano Receiver By BetaFPV
Hors stock
€28.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
Powered by Semtech’s LR1121 RF chips and Espressif’s ESP32-C3, the SuperX debuts BETAFPV’s first Gemini Xrossband receiver – seamlessly handling both 900M (868/915MHz) and 2.4G bands using advanced LoRa and ultra-fast 1000Hz FSK modes.
Push through race gates or reach for long-range flights with unshakable signal reliability, even where other links drop out.
Choose the dual-band power of the SuperX Nano for precision-tuned performance in any flight scenario.
*Power and distance are subject to specific regulations, be sure to respect those established in the country where you are playing.
Specifications
- MCU : ESP32-C3
- Telemetry power : 20dBm
- Input voltage : 5V
- Protocols : CRSF, SBUS, SUMD, DJI RS2 Pro, MAVLink
- RF chip : Dual LR1121
- Reception mode : Diversity/Gemini
- Frequency band : 900M+2.4G
- Antenna connector : IPEX MHF1 x2
- Weight : 1.45g
- Dimensions : 16.3*21.4mm
- LUA name : BFPV SuperX Nan
- Recommended : 5"+ drones (freestyle/photo/Long range)
Bullet points
- Semtech LR1121 RF chips + Espressif ESP32-C3
- LoRa and blistering 1000Hz FSK modes
- Supports 900M Gemini, 2.4G Gemini, 900M+2.4G GemX
- SuperX Nano: Dual-band mastery for RF-challenged environments
- Works with Micro/Micro V2/Nano V2/SuperG TX modules
- Compact and lightweight
Included
- 1x SuperX Nano Receiver
- 2x Dual-band T Antenna
- 1x SH1.0 Connector (Double Ended)
- 2x Heat Shrink Tubing
- 1x User Manual
