Manufacturer : Speedy Bee / Référence : SB-Master3X-FRM-O4P

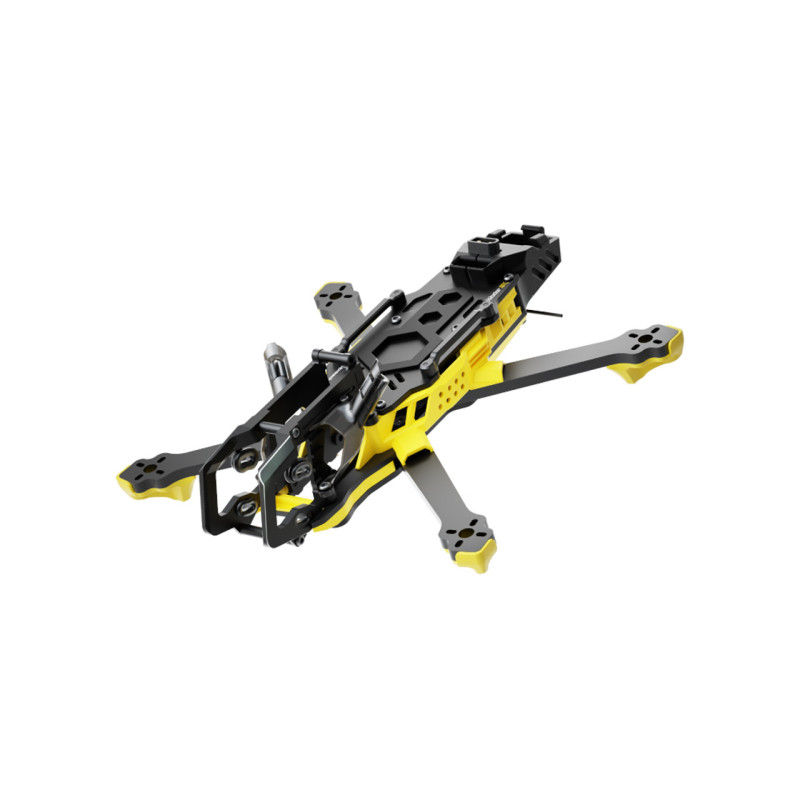

SpeedyBee Master3X O4 PRO Frame Kit
En stock
€49.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
SpeedyBee Master3X – Modular FPV Frame for 3 to 3.6 inch builds
The SpeedyBee Master3X is an ultra-light modular frame designed for freestyle and cinematic FPV drones. It features a low center of gravity, quick-swap arms, and full compatibility with DJI O4 air unit.
Specifications
- Wheelbase: 171 mm
- Weight without head: ≈ 87 g
- Plate thickness: 2 mm (top/mid/bottom), 4 mm arms
- Stack height: 11 mm
- Mounting holes: 25.5 x 25.5 mm
- Motor mount pattern: 9 to 12 mm
- Propeller size: 3 to 3.6 inch
- Recommended motors: 1507, 1804, 2004, 2006, 2105.5
- Suggested KV: 4S (3000–3600 kv), 6S (2200–2750 kv)
- Max battery size: 67 × 31 × 40 mm
- GPS mount: 18 × 18 mm (others via 3D print)
Bullet points
- High strength 3K T300 carbon construction
- Low center of gravity X design
- Tool-free quick swap arms
- Fully compatible with DJI O3 / O4 units
Included
- 1x SpeedyBee Master3X frame
- Full screw pack
- Battery pads, straps, TPU mounts
SpeedyBee Master3X O4 PRO Frame Kit
En stock
€49.90
