Manufacturer : RushFPV / Référence : DE11

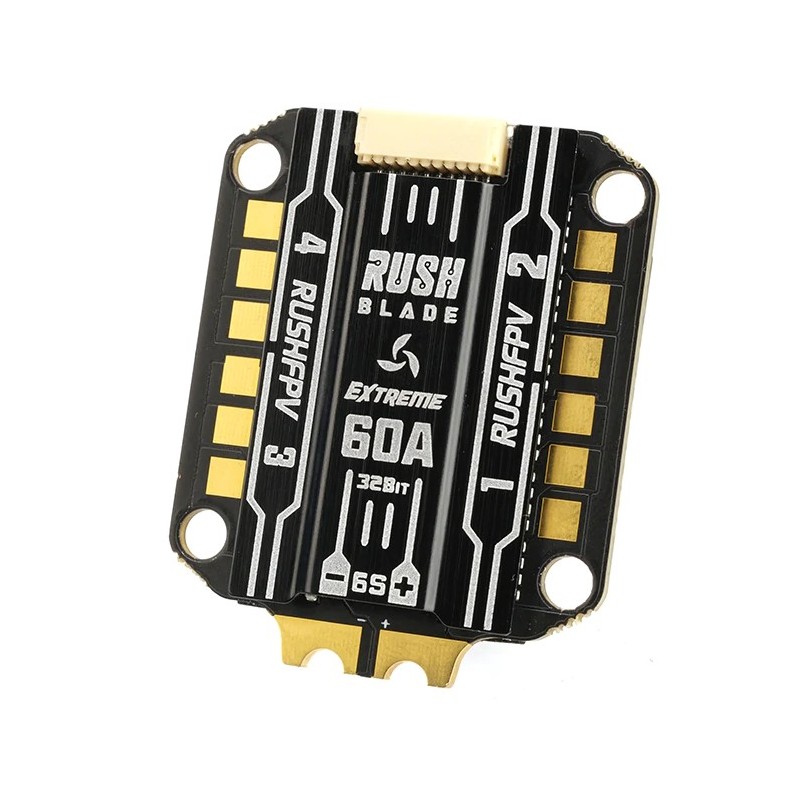

Rush Blade Extreme 60A 3-6S 4in1 ESC By RushFPV
Hors stock
€119.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
This RushFPV Extreme Edition 60A 4in1 ESC is equipped with an aluminum shell, a 200MHz F4 MCU with AM32 Firmware and a 24Hz-128KHz PWM frequency dual board.
Bullet points
- 32-bit microprocessor running at a frequency of up to 200MHz for an excellent performance.
- Supports up to 128K PWM frequency, so the response speed is faster and smoother, reducing mid-throttle oscillations.
- Equipped with double-sided lightweight metal armor to avoid hardware damage caused by crashes, and the armor can effectively assist the MOSFET to dissipate heat.
- Double PCB board design, high current circuit, and signal circuit are independent of each other.
- All codes use damped light mode. Damped light does regenerative braking, causing very fast motor retardation, and inherently also causing active freewheeling.
- Supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us) and Multishot (5-25us).
- Dshot signaling is supported at any rate up to at least Dshot1200. The input signal is automatically detected by the ESC upon power-up, No need for throttle calibration.
- Supports beacon functionality, where the ESC will start beeping after a given time of zero throttles. This can be very useful for finding a lost drone.
Specifications
- Rated Current: 60A
- Peak Current: 80A
- Input Voltage: 3-6S Lipo
- MCU: F4 @ 200MHz
- PWM FREQ: 24-128KHz
- LED Color: Orange
- Weight：16.5g
- Dimension: 45*36.5*7.5mm
Included
- 1x Rush Blade Extreme 60A 3-6S 4in1 ESC
