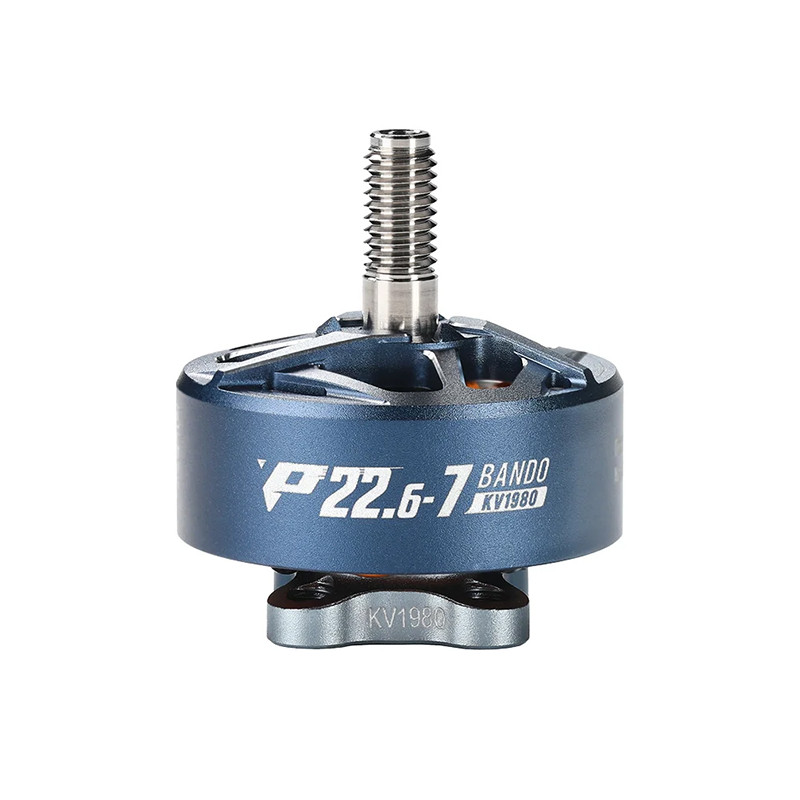

P22.6-7 - 1980KV Brushless Motor By T-Hobby
Related accessories
Technical characteristics
The T-HOBBY P22.6-7 brushless motor is designed for FPV pilots seeking durability, precision, and reliability on 5 to 6-inch drones. Its reinforced 5 mm internal shaft provides excellent impact resistance and reduces the risk of bending, making it an ideal choice for aggressive freestyle and bando flying.
Thanks to an optimized design and high-quality components, this motor delivers a smooth and instant throttle response, ensuring precise control and a natural flight feel. The nickel-plated arc magnets and careful balancing guarantee stable and consistent performance, even during the most demanding maneuvers.
This 1980KV version integrates perfectly with modern 6S setups, offering an excellent balance between power, efficiency, and durability. A reliable, high-performance motor built to push the limits of freestyle FPV.



Specifications
- KV : 1980
- Max power : 193W
- Voltage : 6S
- Max thrust : 1739g
- Idle current (10V) : 1.2A
- Internal resistance : 50mΩ
- Peak current : 43A
- Weight (with cable) : ~36.5g
- Dimension : Φ29*32.2mm
- Configuration : 12N14P
- Lead : 20AWG*170mm
- Shaft : M5
Included
- 1x P22.6-7 motor
- 1x Set of screws
- 2x Nut
