Manufacturer : Speedy Bee / Référence : SB-M5V2-FRAME

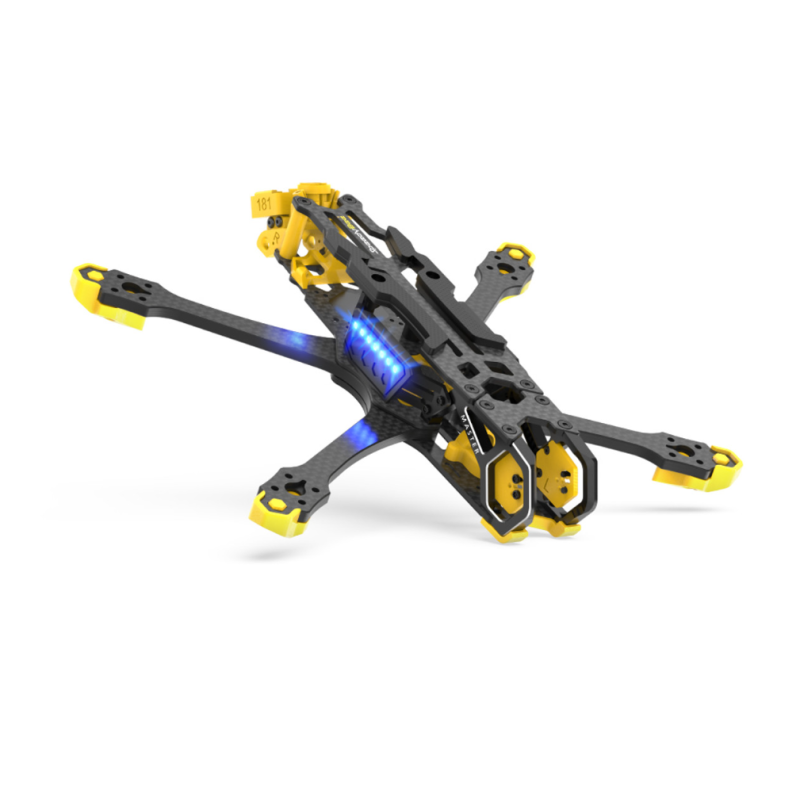

Master 5 V2 Frame Kit By SpeedyBee
En stock
€84.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics
The Master 5 V2 Frame Kit by Speedybee has been designed to handle both freestyle or cinematic flying. It features Deadcat geometry and is available in 20*20mm and 30.5*30.5mm sizes.
Compatible with the DJI O3 HD system and recommended for use with 5" or 5.1" propellers, the Master 5 V2 not only features innovative design, it also comes with an extensive range of accessories to meet almost all your equipment installation needs.
Bullet points
- Designed for freestyle or cinematic flying
- Easy installation
- Innovative anti-vibration stack structure
- Wide field of view
- Removable camera side plate
- DJI O3 compatible
Specifications
- Wheelbase : 226mm
- Weight : ~140g (non-3D printed parts included)
- Top plate thickness : 2.5mm
- Middle plate thickness : 2mm
- Bottom plate thickness : 2.5mm
- Arm thickness : 5mm
- Camera side plate thickness : 2mm TUPC
- 3D printed parts : Yellow TPU
- Motor circlip spacing : φ8mm
- Compatible propellers : 5-5.1 inch
- Mounting holes for motors : 16*16mm
- FC mounting hole : 30.5×30.5(M3) & 20×20mm (M3)
- Aluminum standoff : 7075 M3*23mm*(6mm/4.7mm)、M3*23mm*(4.6mm)
- Internal installation height : 23-30mm
- Standard antenna installation support : SMA (single), O3 4mm, RunCam Link
- Standard GPS base size : 18*18*8mm (other size requiresan additional purchase)
- Rear Support Mounting Holes : 20*20mm - 25.5*25.5mm - 30.5*30.5mm
- Buzzer : TMB12A05
Included
- 1x Master 5 HD frame
- 1x Hardware and 3D print set
