Manufacturer : Lumenier / Référence : 16099

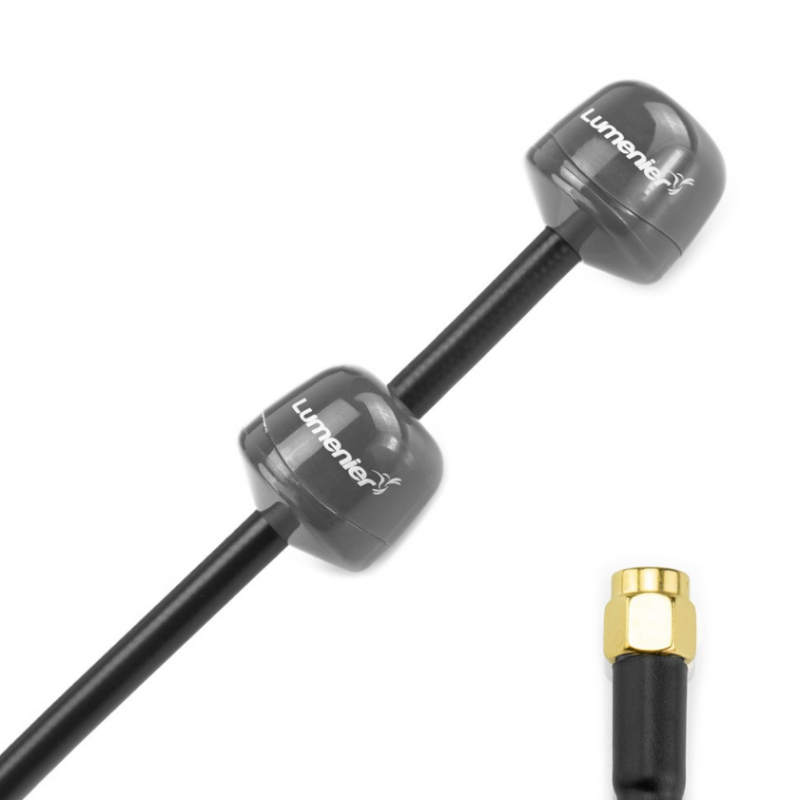

Lumenier Double AXII 2 HD Long Range 5.8GHz Antenna (LHCP, RPSMA)

4.5/5 (2 notifications)
Hors stock
€29.08
Out-of-Stock Notify me when the product is available again

3 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Related products

Technical characteristics

Le Double AXII 2 HD reprend les meilleures parties de l'antenne AXII 2 d'origine et fait plus que doubler le gain pour une meilleure portée ainsi que des performances améliorées ! Il s'agit d'une antenne FPV à polarisation circulaire omnidirectionnelle à gain élevé dans un facteur de forme compact. Spécialement conçue pour fonctionner sur les lunettes FPV numériques DJI sans adaptateur !

Doubling the gain gives you a longer range! These antennas provide high gain in addition to the quality of the omnidirectional. The Lumenier antenna can operate both in reception and in transmission. Note, however, that due to the nature of the radiation pattern, it is best suited as a receiving antenna.

Bullet Points

  • Double the Gain = Longer Range
  • Omni-Directional
  • Perfect for both transmission et reception
  • Excellent signal all around you in a 32 degree FOV.
  • Improved Features Over Standard AXII V1
  • Significantly Improved Range with a Higher Gain (4.7dBiC Gain)
  • Wider Bandwidth (5.3-6.2GHz)
  • Cleaner Signal And Better Rejection to Interference
  • More Durable - Improved Injection Molded Housing
  • Virtually Perfect Axial Ratio
  • Super Tough
  • Also works great on the DJI digital FPV goggles(with a RP-SMA to SMA adapters)

Specifications

  • Gain : 4.7dBiC
  • Axial ratio : 1.0 (near perfect)
  • Bandwidth : 5.3GHz-6.2GHz
  • Radiation Efficiency : 98%
  • SWR : <=1.5:1
  • Weight : 12g
  • Size : 130mm x 17.5mm
  • Connector : RPSMA
  • Polarization : Left Hand Circular (LHCP)

Included

  • 1x Lumenier Double AXII 2 HD Long Range 5.8GHz Antenna (LHCP - RPSMA)
Voir plus

Customer reviews

4.5/5 (2 notifications)
Par le 04/01/2022

Pas encore essayé mais la qualité semble au rendez vous.

Par le 25/11/2021

Très bonnes antennes
