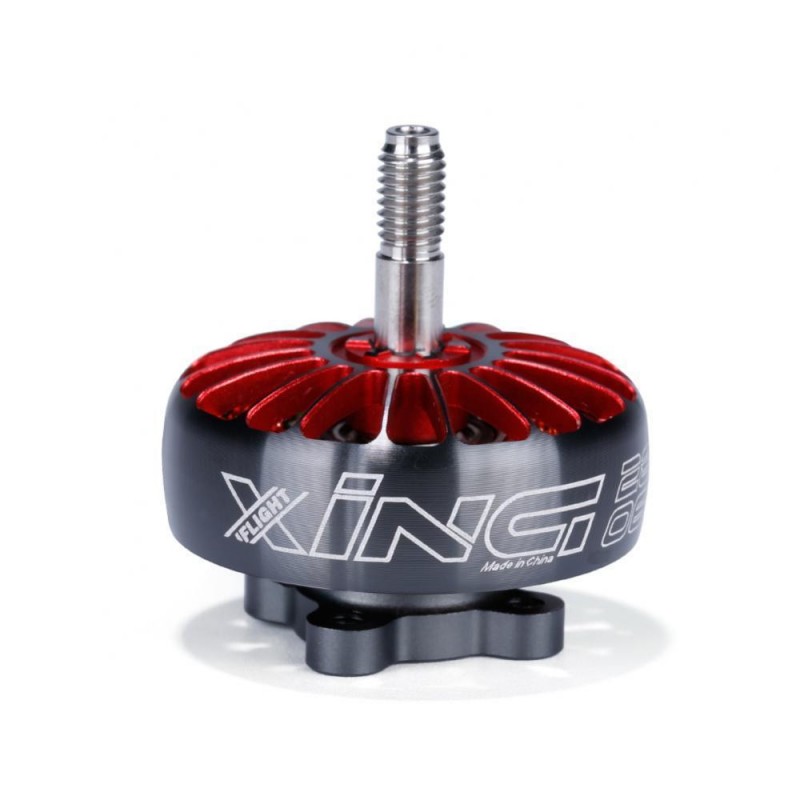

Iflight XING Unibell 2806.5 - 1300Kv Race motor
The iFlight XING series motor is designed and named by FPV pilot & specialist Patrick Xing.
The Motor XING 2806.5 designed for bigger quads like 7-8 inch quad frames, which is with better efficiency in this range frames.
The XING 2806.5 features uni-bell design and adopt Japan NSK bearing, N52H arc magnets.
It offers incredible thrust number, highly responsive and extremely smooth flight characteristics. The bigger stator size 2806.5 allows it to provide instant power to save you from those crazy mountain dives last minute. It's a great motor if you're building bigger drones like 7 inch or 8 inch.
- High-strength 4mm Titanium alloy shaft
- Unibell design
- 7075 aluminum Bell and Base
- Electromagnetically matched magnets and stator
- Japanese NSK 11*5*5 bearings
- N52H Arc curve magnets
- Motor wires protected
- Hex bolt shaft set screw
- Dynamically balanced
- Voltage: 2-6S
- KV Option: 1300
- Configuration: 12N14P
- Bearing: NSK 11x5x5mm
- Stator Diameter: 28mm
- Stator Length: 6.5mm
- Shaft Diameter: M5
- No.of Cells(Lipo): 2-6S
- Motor mount hole: 19x19mm, M3
- Weight: 49.5g(with a short cable)
- 1x 2806.5 - 1300Kv Motor
- 1x M5 Nut
- 4x M3x8 Screw
J'ai pas encore testé à fond mais les débuts sont très prometteurs. Réactifs et puissants
The Motor spoke design is not durable at all :/ Performance is great tho on an 6S 7 inch LoRa Quad.
Le top pour du LR 7''!!
