Manufacturer : Skystars / Référence : SKY-150735

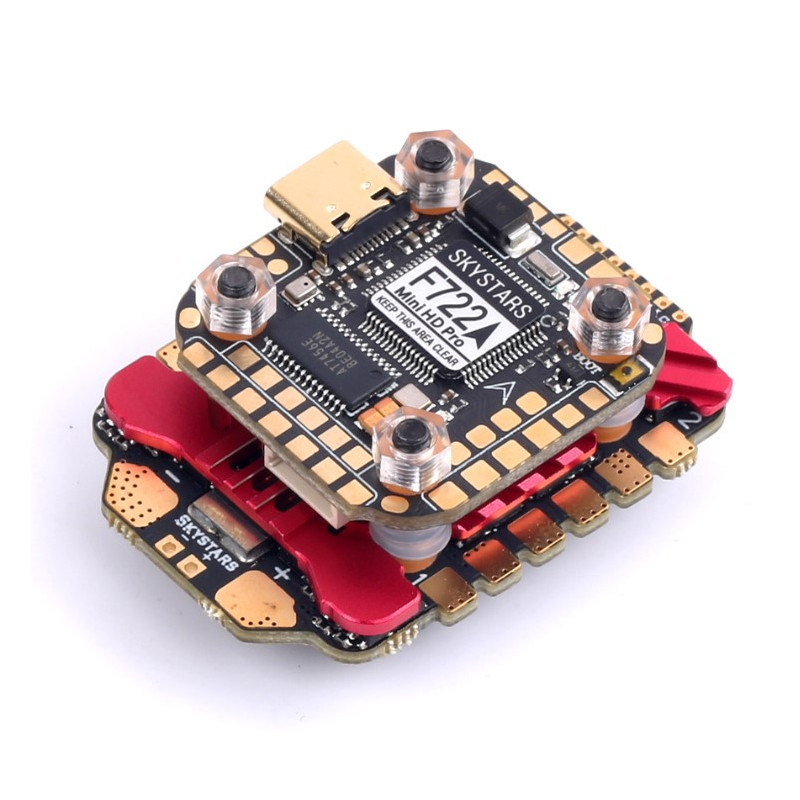

F722 Mini HD Pro + KM55 AM32 Stack By Skystars

Hors stock
€111.90
Out-of-Stock Notify me when the product is available again

12 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Related products

Technical characteristics

The SkyStars F722 HD + KM55 stack includes an F722 Mini HD pro 20x20 flight controller along with a KM55A AM32 4in1 ESC to give your quad all the power it needs.


FC

  • MCU: STM32F722RGT6 216MHz
  • IMU: BMI270 (SPI)
  • OSD: Betaflight OSD & DJI HD OSD (UART6)
  • 6 hardware UARTS (UART1,2,3,4,5,6)
  • 5V 2A & 10V 2A
  • Input Voltage: 3-6S Lipo
  • Blackbox: 16MB
  • Barometer: YES
  • Firmware: SKYSTARS F7HD
  • Dimensions: 35x28x7mm
  • Mounting Holes: Standard 20mm/M3 square to center of holes
  • Weight: 4.2g

ESC

  • voltage: 3-6S LiPo
  • Con.Current: 55A Peak
  • Current: 70A≥ 10S
  • Firmware: AM_32
  • Support : Dshot 600
  • Mounting hole : 20X20 mm/M3
  • BEC: No
  • Product size: 35*47*6.5mm
  • Weight: 16.5g

Included

  • 1x Skystars Kramam 55A AM32 32Bit 3-6S 20×20 4in1 ESC
  • 1x Skystars F722 Mini HD Pro Flight Controller 20×20mm
