Manufacturer : Speedy Bee / Référence : SB-F405WING-APP

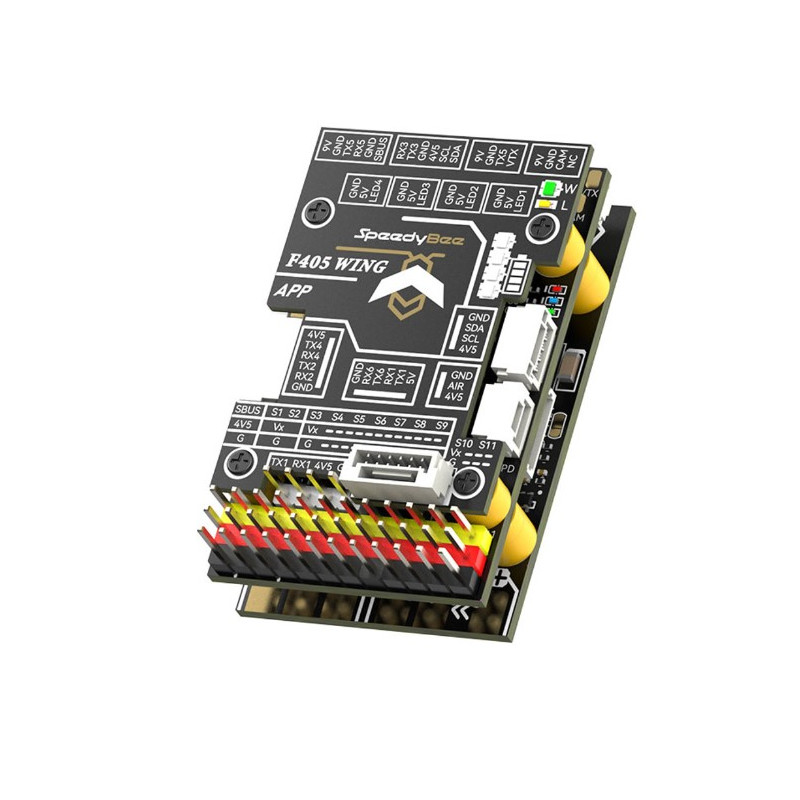

F405 WING APP Flight Controller By SpeedyBee

€48.90
Same Day Shipping

5 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Technical characteristics

SpeedyBee's F405 WING APP flight controller is the perfect tool for your fixed wing.

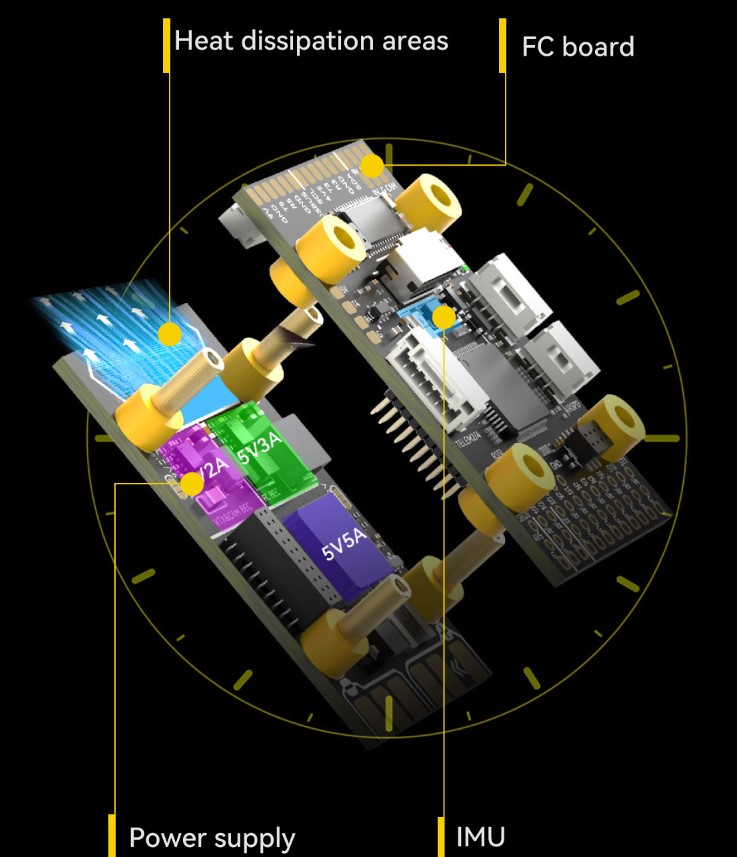

Linked to a PDB board and a second wireless one, this FC is very easy to install thanks to its wireless configuration.

Supporting BLE, Wi-Fi and Bluetooth, there will always be a possible way to connect the board.

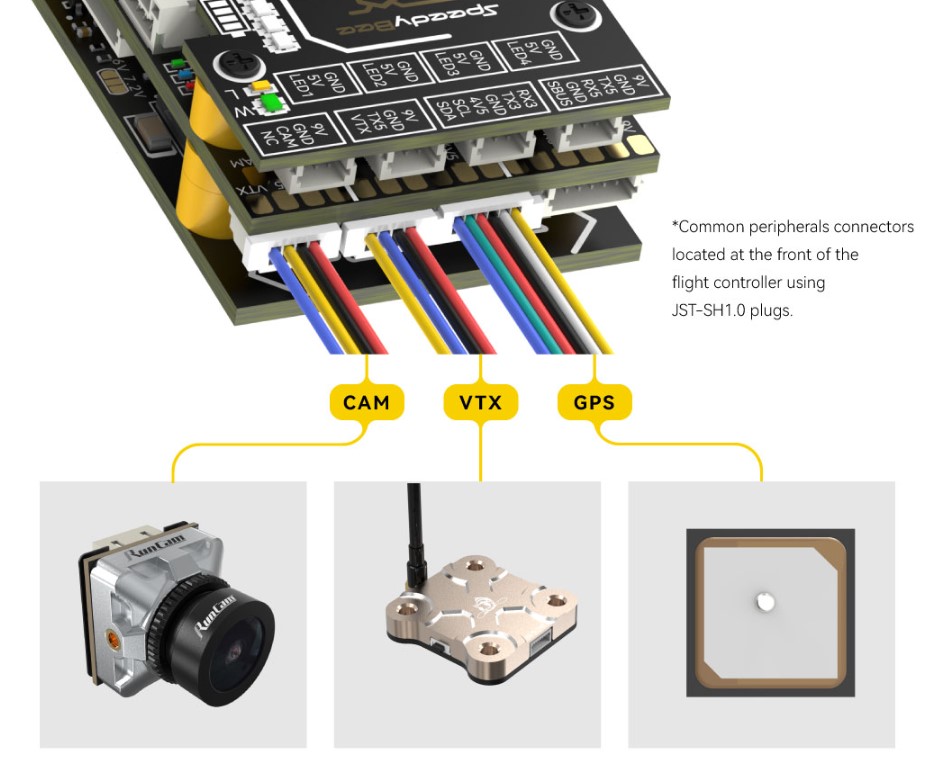

If soldering is not your passion, all you need to do is connect your VTX (analog or HD), receiver, camera or GPS to the F405 WING APP!


FC

  • MCU : STM32F405,168MHz,1MB Flash
  • IMU : (Gyro&Accelerometer) ICM-42688-P
  • Barometer : SPL006-001
  • OSD Chip : AT7456E
  • Blackbox : MicroSD Card Slot
  • UART : 6 sets(USART1, USART2, USART3, UART4, UART5, UART6(Dedicated for Wireless board Telemetry connection))

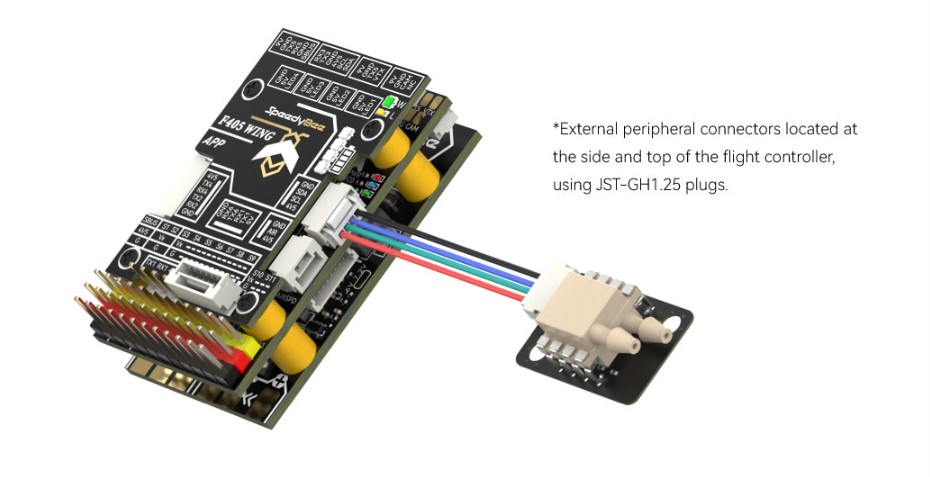

  • I2C : 1x Used for magnetometer, digital airspeed sensor
  • ADC : 4x (VBAT, Current, RSSI, Analog AirSpeed)
  • PWM : 12x (11+1“LED”pad)
  • ELRS/CRSF receiver : Supported,connected to UART1
  • SBUS : Built in inverter for SBUS input (UART2-RX)
  • LED : 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red) 1x RGB
  • RSSI : Supported,Named as RS .
  • Supported FC Firmware : INAV:SpeedyBeeF405WING(default)ArduPilot: SpeedyBeeF405WING
  • Weight : 8.9g

PDB

  • Voltage : 7~36V (2-6S
  • TVS protection : Yes
  • Weight : 11.4g

Wireless

  • BLE mode
  • Wi-Fi mode
  • Classic bluetooth mode

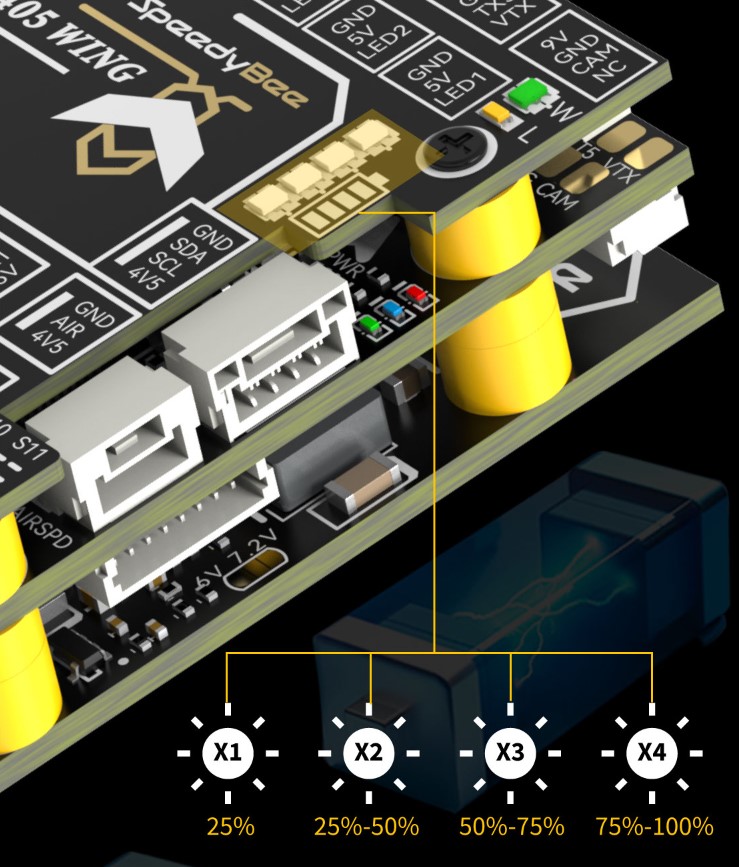

  • 4x WS2812 LED strip
  • Max 5.2V 1.3A
  • Weight : 4.2g
Voir plus
