Manufacturer : Flywoo / Référence : FW19004271
Black Box OpenLager Nano Module By Flywoo
En stock
€15.90
Shipping costs
from 49€ pour France
Same day shipping
for orders placed before 3:30pm (Monday to Friday)
Related accessories
Technical characteristics

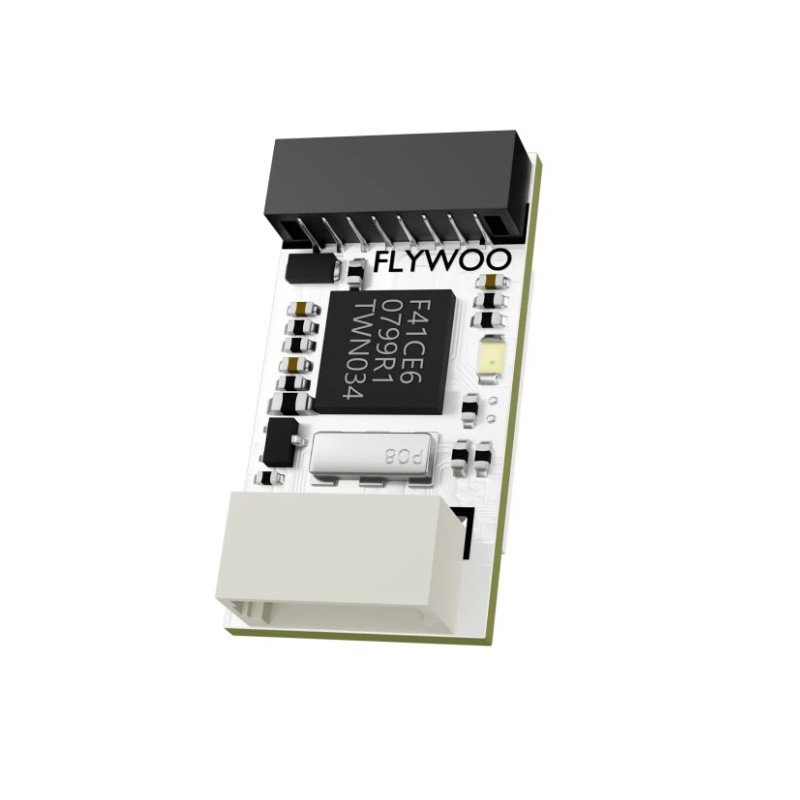

This OpenLager module from Flywoo is the world's smallest flight data recorder designed for micro drones.

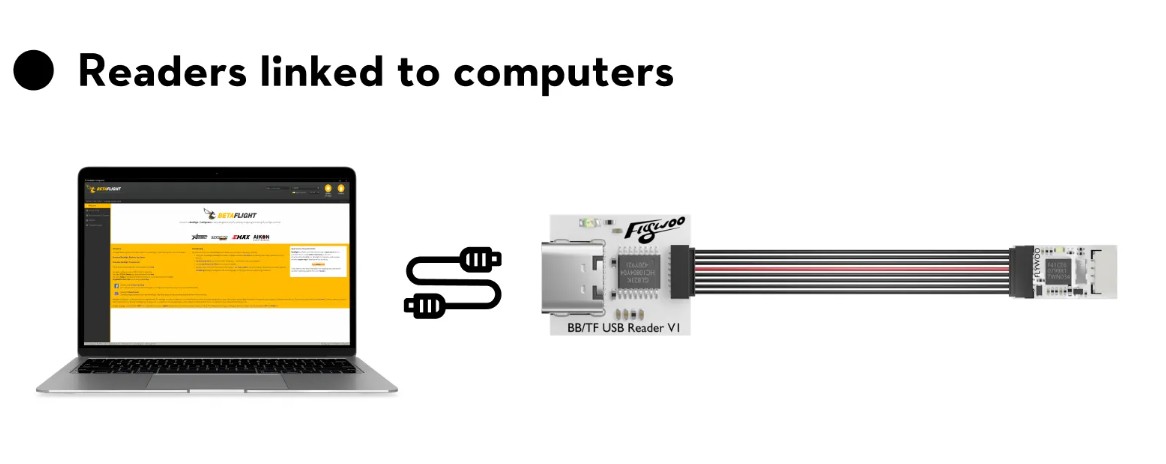

It features 512MB SLC NAND Flash memory and a USB-C 3.0 reader. Extremely compact and lightweight, it's ideal for drones with limited space.
Specifications
- Storage: 512MB SLC NAND Flash
- Interface: USB-C 3.0 (backward compatible with USB 2.0)
- Voltage: 4.5V
- Dimensions: 14×7×3.5mm (module) / 18.2×15.4×6.2mm (reader)
- Operating Temp: -10°C to +40°C
LED status
1. Red light: power light, always on when powered on
2. Blue light slow flashing : memory cannot be detected, use USB card reader to connect to computer to format
3. Blue light fast flashing: flight data recording
Included
- 1x Black Box module
- 1x BBITF USB Reader Vi
- 1x black box & USB Reader connector cable

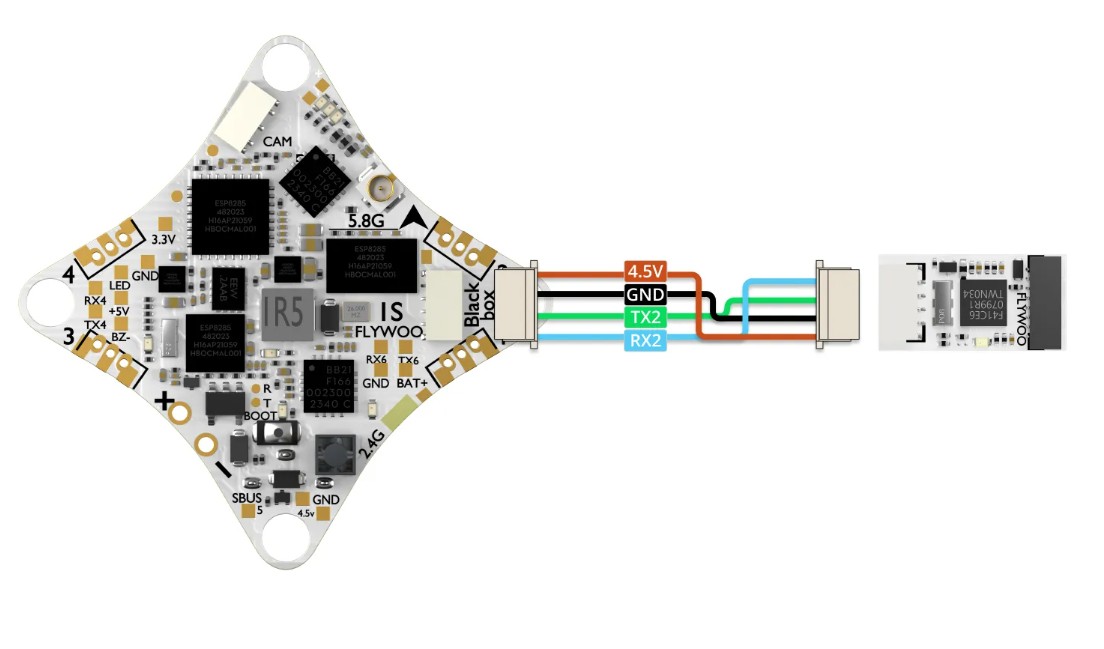

- 1x 4P-0.8mm 10cm cable
Customer reviews
Good when you do not have enough memory for blackbox
I wasn't able to make this thing work with the Flywoo 45A F745 AIO board. It made the quad freak out. I do not know whether I suck, or the thing sucks. I will try it on a different quid, though.
