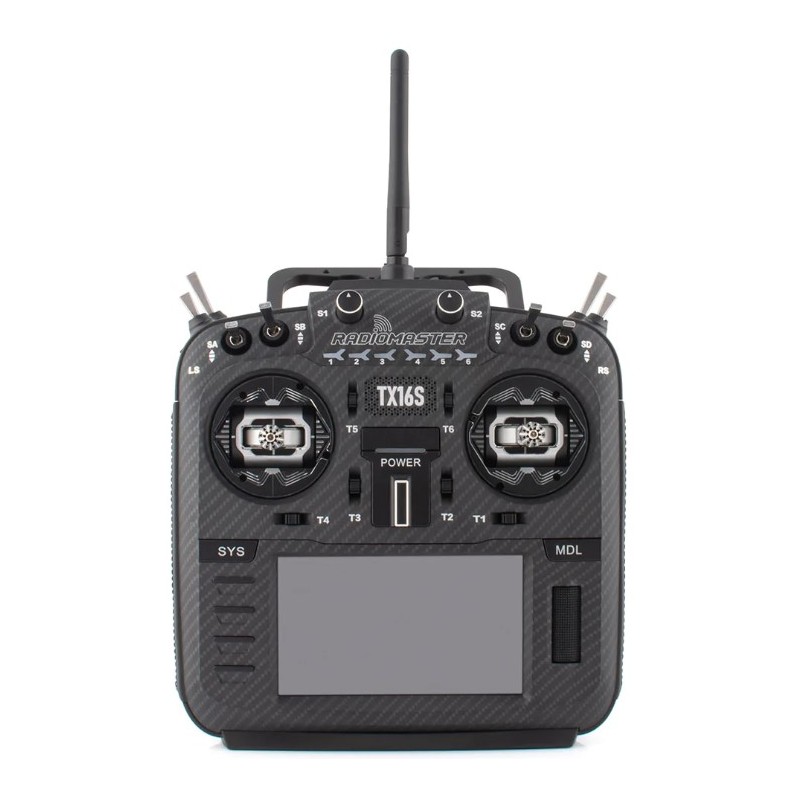

TX16S Mark II Max ELRS With AG01 Gimbals By Radiomaster

Bullet Points

• Improved internal circuity and optimized power supply.
• New charge circuitry with integrated reverse-polarity protection.
• Optimized charge IC now allows up to 2.2A internal USB-C charge current.
• Rear mounted audio jack provided headphone output.
• AG01 gimbals
• Optional high/low rear grips included for improved ergonomics.
• Improved S1/S2 knobs with clear centre-detents.
• Improved LS/RS Sliders with smoother feel and better centre-detents.
• Redesigned battery cover for improved battery access.
• Retooled body shell with improved fit and finish.
• Trainer socket changed to standard TRS 3.5mm socket.
• Rear DIY Socket added for personalised mods.
• Improved internal plastics for better longevity.

Specifications

• Size: 287x129x184mm
• Weight: 750g (without battery)
• Transmission frequency: 2.400GHz-2.480GHz
• Transmitter module:  Internal ELRS EU version
• Transmitting power: max 250mW
• Antenna gain: 2db (transmit power adjustable)
• Working current: 400mA
• Working voltage: 6.6-8.4v DC
• Remote control distance:> 2km @ 22dbm
• Radio firmware: EdgeTX
• Module Firmware: ExpressLRS 2.4G
• Channels: Up to 16 channels (depending on the receiver)
• Display: 4.3-inch TFT full-colour touch display with a resolution of 480 * 272
• Gimbal: AG01
• Module Bay: JR compatible module bay
• Upgrade method: Supports USB-C online / SD card offline upgrade
• EdgeTX installed by default (requires EdgeTX v2.6.0 or OpenTX v2.3.15 or later)

Included

• 1x TX16S Mark II Max Radio Controller
• 1x 18650 Tray
• 1x USB-C Cable
• 1x Screen Protector
• 1x pair of flat grips
• 1x pair of raised grips
• 1x TX16S Key Chain
• 1x Neck strap

Note : 18650 not included
