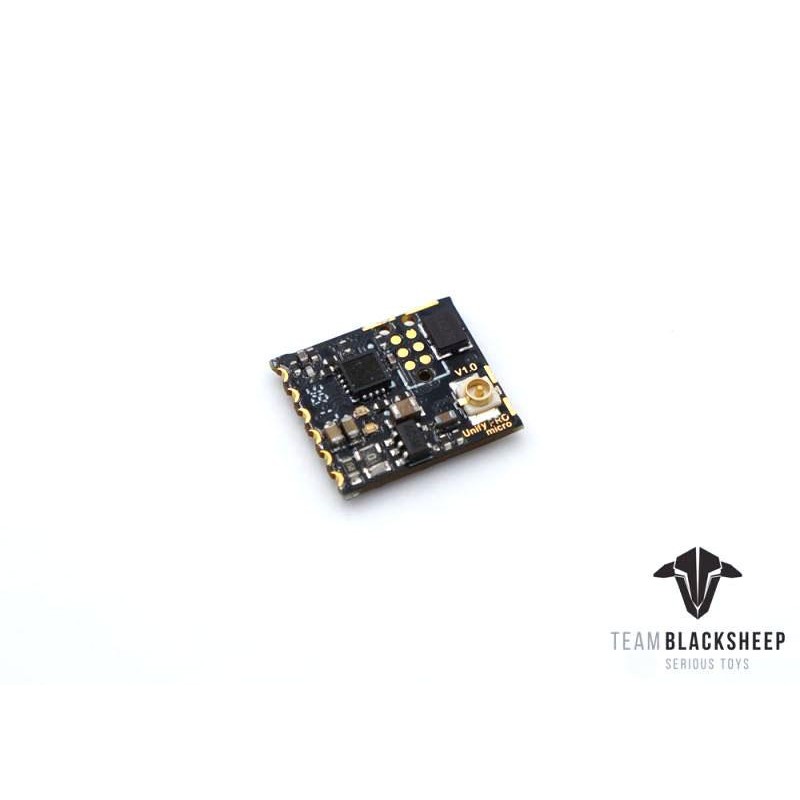

TBS Unify Pro Nano 5.8g
The world's smallest FPV video transmitter with 25mW / 50mW power levels, Smart Audio and u.FL
By buying this product you can collect up to 2 loyalty points. Your cart will total 2 loyalty points that can be converted into a voucher of 0,40 €.
Same Day Shipping Warning: Last items in stock!
Availability date: 2016-04-15
Degressive Shipping Costs
Same day shipping for orders placed before 3:30 pm (Monday to Friday)
As builds become smaller and the innovation surrounding brushed and brushless micro quads accelerates, the need for a high-quality VTx increases. TBS has built the smallest VTx possible, focusing purely on size! Sporting the usual Unify Pro pedigree, a newly-revised u.FL connector and the industry-standard Smart Audio support. You will be blown away with the performance in terms of range, signal clarity and signal spacing.
- Input Voltage: 4.5V - 5V
- Power levels: 25mW / 50mW
- Interface: SmartAudio and capacitive button (or solder external tactile button separately - included!)
- Weight: 1.4g (incl. antenna)
- Size: 13.2mm x 14.6mm
- Antenna connector: u.FL (upgraded)
- Antenna length: 45.6mm (end to end)
- TBS Tech: Smart Audio, Clean Switch
- 1x Unify Pro nano 5G8 VTX
- 1x button switch
- 1x TBS UNIFY PRO 5G8 Linear Antenna
- 6x 30awg silicon connection wires (2 black, 2 red, 1 white, 1 yellow)
