PyroDrone F4 OSD V2.3 with VTX PIT MODE

PyroDrone

4547

One of the most popular FC’s is back and better than ever with its version 2.3, combining an industry favorite layout with new feature sets for freestyle, long range, and racers. Finally, a board for every pilot!

Learn more

By buying this product you can collect up to 3 loyalty points. Your cart will total 3 loyalty points that can be converted into a voucher of 0,60 €.

Same day shipping

41,50 €

37,35 €

  • Degressive Shipping Costs

  • Same day shipping for orders placed before 3:30 pm (Monday to Friday)

More info

Upon receiving your FC,please connect to USB and calibrate before continuing to build and solder to it.

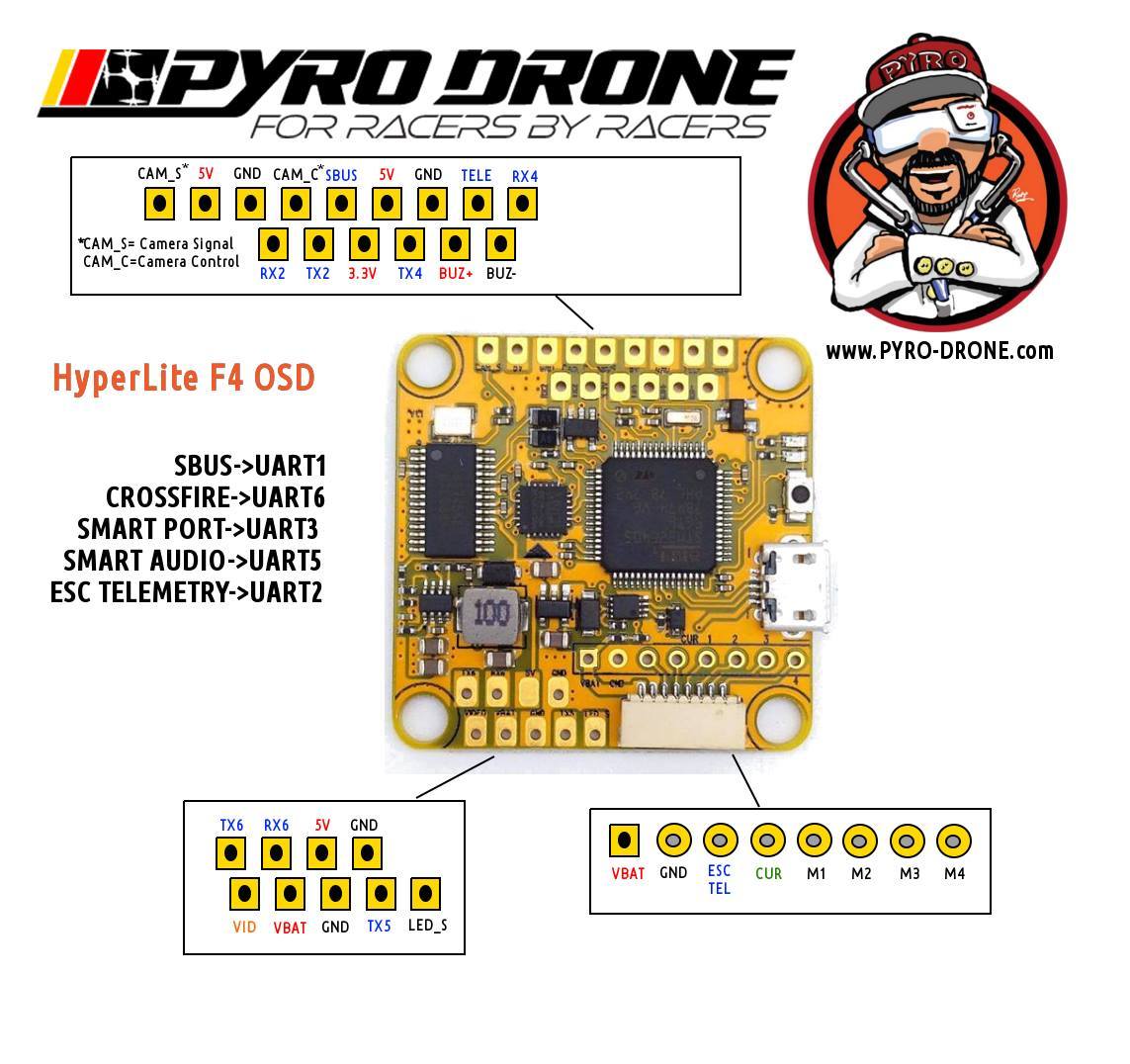

The new Hyperlite F4 OSD takes the same celebrated ‘flat-bottomed’ layout (crucial for clean and tight builds) and adds a much appreciated OSD and SIX UART ports (more than any other board on the market!) for GPS, RX, SmartAudio, and even Camera Control.
And with more features, comes improved ease of use with a built in 4-in-1 ESC socket and included harnesses for HobbyWingAiKON AK32, and Spedix GS35 4in1 ESCs. The built in solder pads mirror the 4in1 pad layout, so you can easily connect ANY ESC to this board to get features like current sensing and ESC telemetry (for the BL32 guys).
PLEASE NOTE: The Hyperlite F4 OSD uses it’s own BF target .bin, “PYRODRONEF4”.
Tech Specifications:
MPU6000 Gyro
STM32F405 CPUE @ 168mhz, can be overclocked
2-6S direct battery input
3.3V 100ma, 5V 1.2A BEC
5V Camera Power
Built in configurable Betaflight OSD
Flat bottom PCB for SUPER CLEAN builds
36x36 PCB with 30.5x30.5 mounting holes
6 UARTS. UART1 (INVERTER FOR SBUS),
          UART2 (FREE),
                  UART3 (INVERTED TELEMETRY),
                  UART4 (Free),
                  UART5 (Smart Audio)
                  UART6 (Free)
Built in 4 IN 1 ESC socket(including ESC telemetry, External current sensor)
Plug and plug with the most popular 4-in-1 ESCs (HobbyWing, Airbot, Spedix, Aikon),with supplied cables
Built in solder pads mirror of the 4-in-1 ESC socket
Printed layout instructions ON the board - no need for instructions!
To get FRSKY Telemetry working you need to type 'Set tlm_halfduplex = off" in CLI
Version 2.3 Update:

Attention! you have to update your FW 3.5.5 or up for the VTX pit mode.
The Pyrodrone F4 OSD has a new feature!
VTX Pit mode compatibilty.

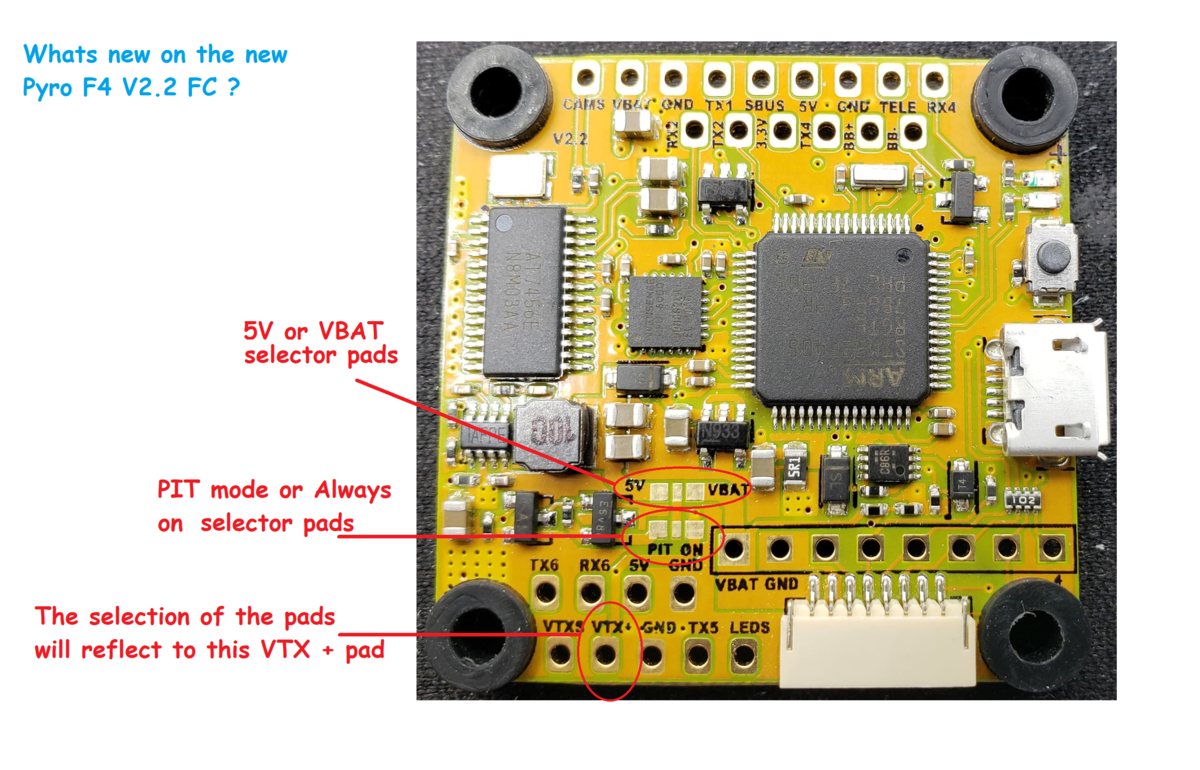

Now there are sellector pads for your VTX voltage input!
5V and VBAT.
First please jump the correct side pads according to the VTX you are using.

And then jump the two pads on the "PIT" side ( If this feature is not needed then just jump the pads of the "ON" side and your VTX will always be on)
After you jump the PIT pads connect to Betaflight and go to CLI page , type in the following commands:

resource PINIO 1 A15
set pinio_box = 39,0,0,0
type "save" and then hit enter.

Wait for the FC to reboot, then go to the "MODES" tab in Betaflight and set VTX PIT MODE to an AUX channel you prefer

Done! :-)
