Manufacturer : Speedy Bee / Référence : SB-MASTER5-HD-O3170

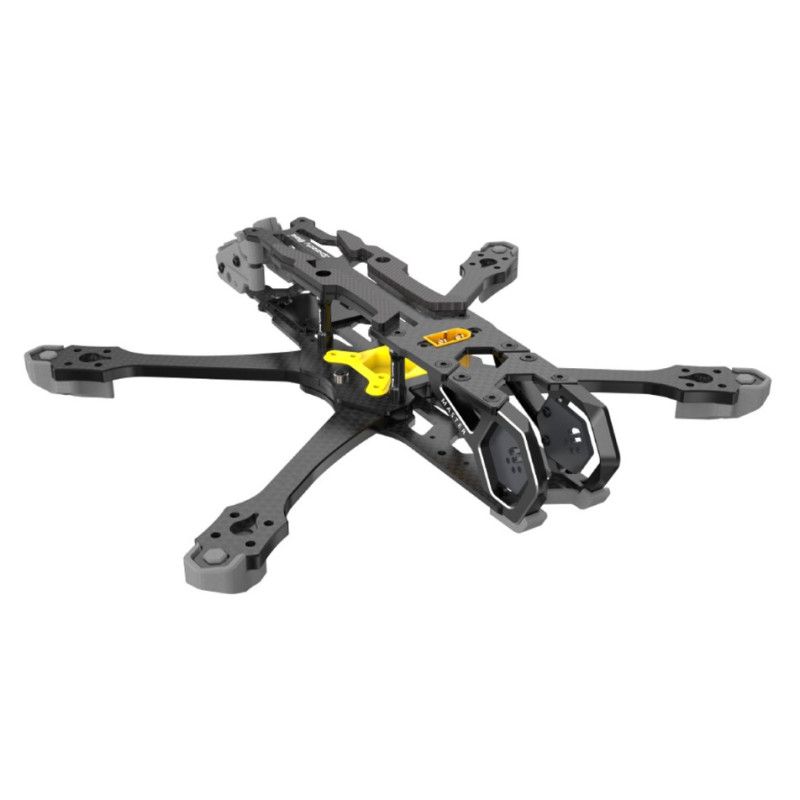

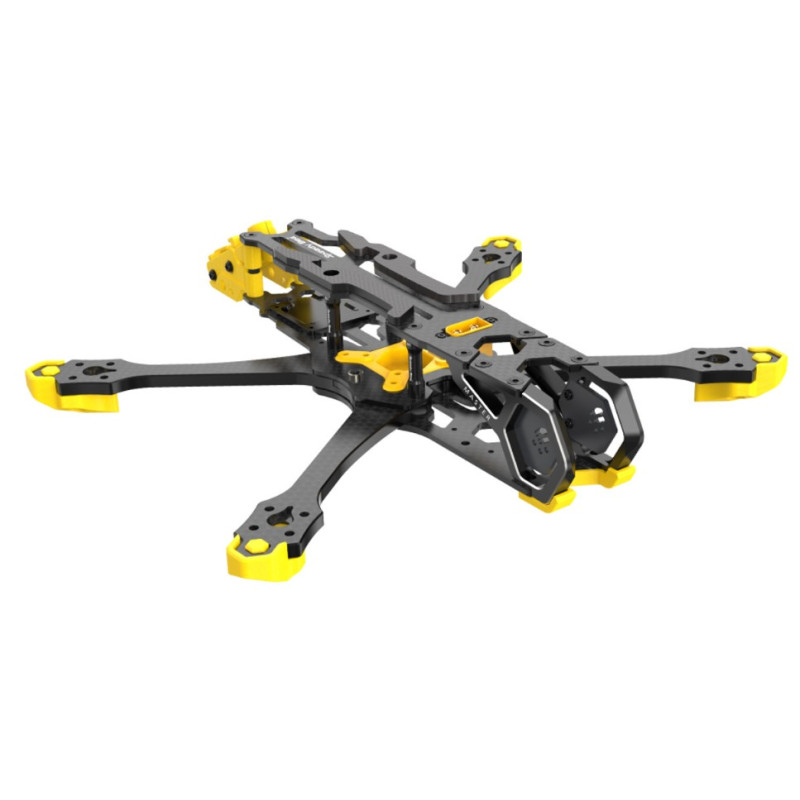

Master 5 HD Frame Kit By SpeedyBee

Color : Grey
Color : Yellow Color : Grey
8 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

100% secure payments
Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Caractéristiques techniques

The Master 5 HD from SpeedyBee has a wide X geometry and is mounted in 20*20mm and 30.5*30.5mm.

This frame is compatible with the DJI O3 HD system.

Bullet points

  • Designed for freestyle
  • Easy installation
  • Wide field of view
  • Removable camera side plate
  • DJI O3 compatible


  • Wheelbase: 225mm
  • Weight : ~143g (without TPU)
  • Top/Bottom thickness : 2.5mm
  • Middle plate thickness : 2mm
  • Arm thickness : 5mm
  • Camera width : 19-20mm
  • Motor mounting hole : 16*16mm Ø8mm
  • Suitable props : 5-5.1"
  • FC mounting hole : 30.5*30.5mm (M3) / 20*20mm (M3)
  • VTX mouting hole : 30.5*30.5mm (M3) / 20*20mm (M2)
  • Camera mount material : 7075 aluminum alloy
  • GPS base size : 20*22*6mm


  • 1x Master 5 HD frame
  • 1x Hardware set
  • 1x DJI O3 Setup Module
  • 1x 8pin 75mm Cable
  • 1x Plug XT60E1-M


Voir plus

Customer reviews

5/5 (2 notifications)
Par le 25/04/2023

Ottimo prodotto

Par le 07/04/2023

Very nice frame, an extra 170mm coaxial cable for the O3 camera is included, I bough an extra one because nowhere it was written, besides that I am satisfied with the product !
