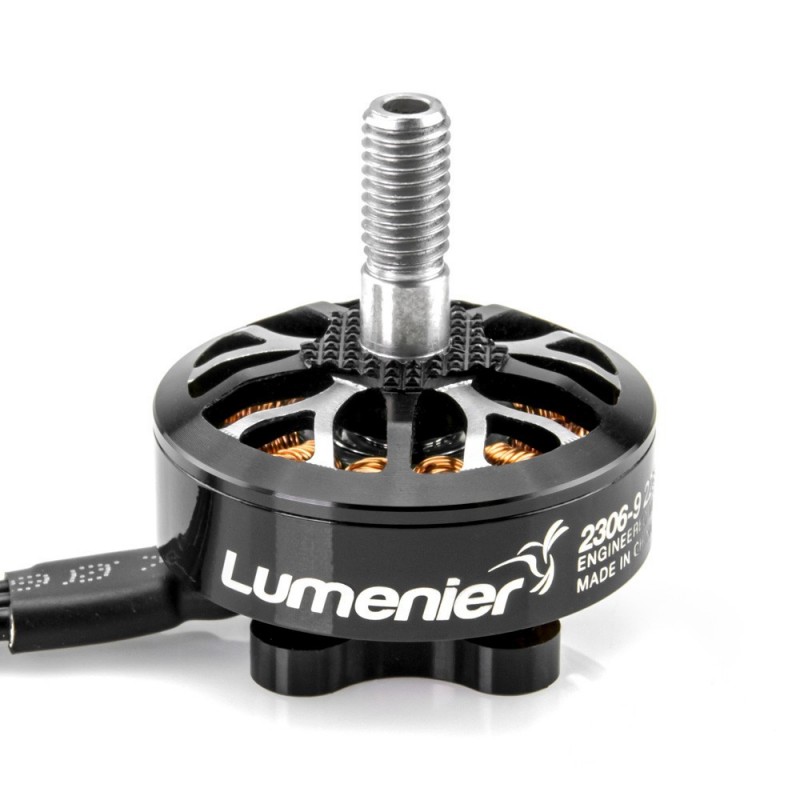

Lumenier 2306 - 2550KV JohnnyFPV Cinematic Motor
The 2306 Cinematic was engineered to better compliment JohnnyFPV's current flying style - gigantic dives and full-speed acro. Both of these require high power and top-end torque to make high-speed maneuvers without losing momentum.
The 2306 Cinematic comes in a brand new bell design, with double anodization that looks clean and aggressive at the same time. Curved N52SH magnets give consistently locked in power that is has plenty of torque to pull out of huge dives, while still maintaining the cinematic smoothness that so many freestyle pilots love. The JohnnyFPV Cinematic is equipped with a hollow steel 4mm shaft with screw termination for easy maintenance, and available in 3 KVs to match your perfect setup (2550kv, 2250kv, 1750kv).
This motor incorporates a 1 piece 4mm steel shaft for improved durability, along with steel threads that resist stripping much more compared to aluminum. Large 9x4x4mm steel bearings provide a buttery smooth flight to aid in that juicy cinematic footage.
New in V2
- Upgraded Titanium shaft lowers weight by 2g!
- New single-wind ultra-high temperature copper winding for improved performance
- 7075 high-grade Aluminum for extreme durability
- Curved N52SH magnets for increased power
- Minimal base design for additional weight savings
- Single piece 4mm steel shaft with a screw termination in the base for easy maintenance
- Anti-slip grip deck for the propeller machined into the aluminum bell
- Stylish two-tone anodization
- 3 colors and 3 KV's to perfectly match your flying style and setup
- Red 1750KV, Blue 2250KV, Black 2550KV
- Long 145mm motor wires for ultra-clean setups with a 4in1 ESC even on 6" build
In addition to all these features, the Johnny 2306 motor uses high-quality parts and precision manufacturing at Lumenier's manufacturing facility. High-grade aluminum, N52SH magnets, smooth 9x4x4 steel bearings, and tight QC ensure you get the very best out of every motor.
- KV: 2550(Black 4S)
- Configuration: 12N14P
- Termination: D (Delta)
- Stator Diameter: 23mm
- Stator Height: 6mm
- Magnets: N52SH Curved
- Bearing Size: 9x4x4mm
- Shaft: 5mm Steel
- Inner Shaft Diameter: 4mm
- Weight: 30g (short wires)
- Motor Wire Length: 145mm
- Motor Connection: Bare Wire
- 1x Lumenier 2306-8 JohnnyFPV Cinematic Motor
- 1x Lumenier M5 Black Aluminum Low Profile Lock Nut (CW)
- 4x M3x6 Socket Cap Screws
- 4x M3x8 Socket Cap Screws
