Hobbywing - XRotor 1408-3250KV Race Pro-RED-V1

Hobbywing

XROTOR-1408-3250-RACE-PRO

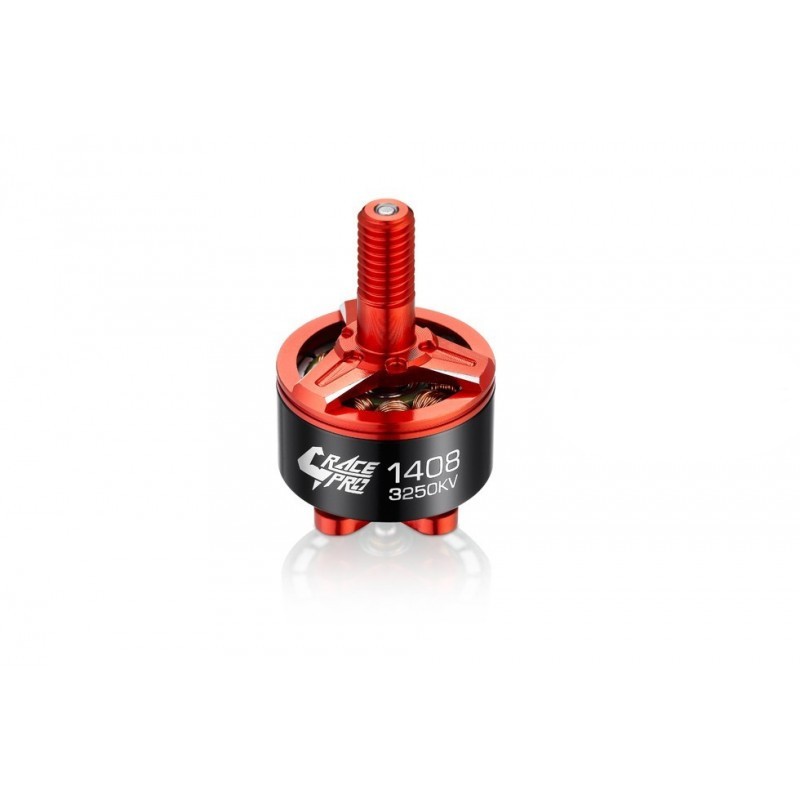

The Hobbywing XRotor 1408 Race Pro are the motors specially designed for the 130mm FPV racing drones. They inherit swift acceleration, fast response and high efficiency of the XRotor Race Pro series motors and provide more power options for the small-scale FPV Drones.

Learn more

By buying this product you can collect up to 1 loyalty point. Your cart will total 1 loyalty point that can be converted into a voucher of 0,20 €.

Produit indisponible pour le moment

X

Get emailed when we have stock again


16,90 €

  • Degressive Shipping Costs

  • Same day shipping for orders placed before 3:30 pm (Monday to Friday)

More info

The Hobbywing XRotor 1408 Race Pro are the motors specially designed for the 130mm FPV racing drones. They inherit swift acceleration, fast response and high efficiency of the XRotor Race Pro series motors and provide more power options for the small-scale FPV Drones.

They are developed to push the limits of durability while remaining extremely lightweight, they weigh only 15.5g (w/o wires).

Top Quality Components

  • High quality 6061 aluminium and high-precision CNC machining technology produce an improved strength and axial concentricity
  • the NSK bearings are high-quality Japanese bearings are the best available, providing longer life, lower noise, and improved overall tolerances
  • ultra-thin (0.15mm) silicon steel laminations are used to manufacture the stators. This high-quality material improves overall efficiency
  • using the strongest, and most heat resistant NbFeB magnets ensure maximum torque under load, and excellent consistency across the motors operating ranges.

Specifications

  • Motor KV : 3250KV
  • Statot diameter : 14mm
  • Stator Thickness : 8mm
  • No. of stator arms : 9S
  • No. of Rotor poles : 12P
  • No-load Current (A/6.4V) : 0.7A
  • Motor Resistance : 118m ohm
  • Max continuous Current (30s) : 9.61A
  • Max. continuous Power (30s) : 154.6W
  • Weight (excluding cable) : 15.8g
  • Rotor Diameter : 19mm
  • Shaft Diameter : 5mm
  • Body Length : 16.3mm
  • Overall shaft Length : 29.3mm
  • No. of cells (lipo) : 4S
  • ESC : 12-15A
  • Recommended Props : 3inch
  • Wire size : 28AWG/80mm
