Manufacturer : SkyRC / Référence : SKY100149

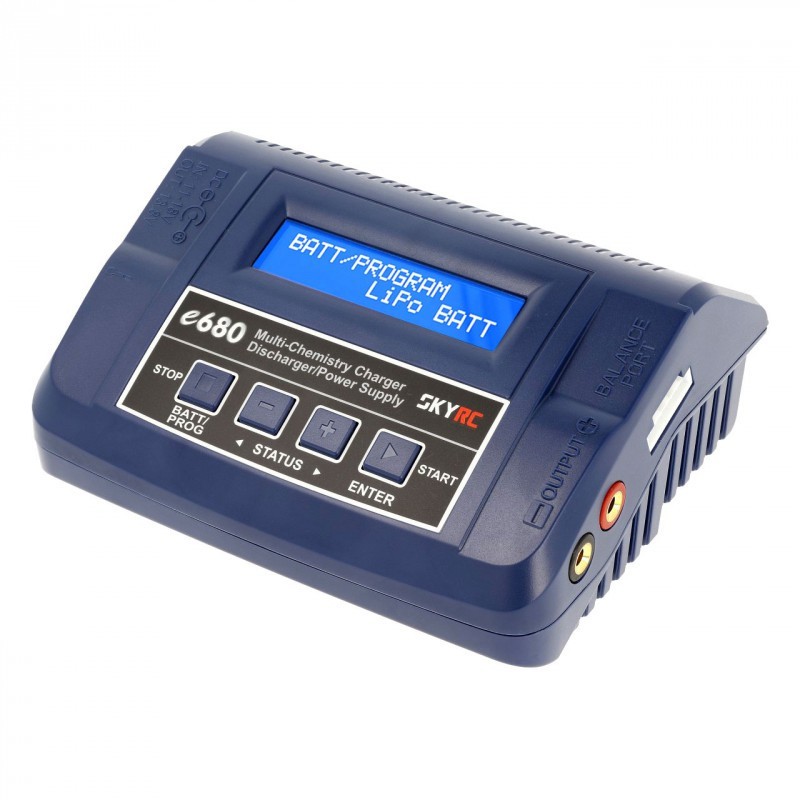

e680 AC/DC Charger (80w) w/ power distribution

6 points loyalty thanks to this product

Thanks to our loyalty program, you collect 1 point with each 10 euros you spend. The points will be collected in your personal account. 1 loyalty point will count for your voucher as 0.2 euros.

Shipping costs from 49€ pour France
Same day shipping for orders placed before 3:30pm (Monday to Friday)

Related accessories

Technical characteristics

SkyRC e680 is a high-performance, micro processor control charge / discharge / power supply with battery management suitable for use with all current battery types.

It is with integral equalizer for six-cell Lithium-Polymer (LiPo), Lithium iron phosphate (LiFe), Lithium-ion (Lilon) and Lithium High Voltage (LiHV) battery with max. 8A charge current and 80W charge power. For PB battery, e680 adds AGM and cold charge modes. It can charge AGM battery, and Pb battery can be charged in cold charge mode in cold days.
This charger can be powered by 11-18V DC or 100-240V AC power source via the built in switch-mode power supply. Besides that, e680 is able to power DC equipment such as tire sander, LED pit light and motor checker, etc. The new features and functions will be listed and explained in detail in the following pages.


•    DC Input Voltage: 11-18V
•    Display Type: 2x16 LCD
•    Case Material: Plastic
•    Case Size: 135x110x60mm
•    AC Input Voltage : 100-240V
•    Display Backlight: Blue
•    Controls: Four Buttons
•    Weight: 390g
•    External Port: 1-6S Balance Socket-XH, Temperature Probe Socket,
Battery Socket, DC Input.
•    Delta Peak Detection for NiMH/NiCd: 3-15mV/cell / Default: 4mV/cell
•    Battery Cutoff Temperature: 20oC/68°F-80oC/176°F(adjustable)
•    Charge Voltage: NiMH/NiCd: Delta peak detection
LiPo: 4.18-4.25V/cell    Pb    Normal:2.4V/cell
LiHV:4,25-4.35V/cell    Pb AGM:2.45V/cell
LiFe: 3.58~3.7V/cell    Pb    Cold:2.45V/cell
Lilon: 4.08-4.2V/cell    DJI13.05V
•    Balance Current: 300mA/cell
•    Reading Voltage Range: 0-1-26.1V/cell
•    Battery Types/Cells: LiPo/LiHV/LiFe/Lilon: 1-6cells
NiMH/NiCd: 1-15cells Pb: 2-20V DJI:3cells(LiHV)
•    Battery Capacity Range: NiMH/NiCd: 100-50000mAh
LiPo/LiHV/LiFe/Lilon: 100-50000mAh Pb: 100-50000mAh
•    Charge Current: 0.1A-8.0A
•    Safety Timer: 1-120minutes off
•    Charge Wattage: 80W
•    Discharge Current: 0.1A-2.0A
•    Discharge Cut-off Voltage: NiMH/NiCd: 0.1-1.1V/cell
LiPo: 3.0-3.3V/cell    LiHV: 3.1-3.4V/Cell
LiFe: 2.6-2.9V/cell    Lilon: 2.9—3.2V/cell
Pb: 1.8-2.0V/cell
•    Discharge Wattage: 10W
•    Balance Cells: 2-6 cells
•    Memory: 10 different charge/discharge profiles
•    Charge Method: CC/CV for lithium types and lead (Pb) batteries
Delta-peak Sensitivity for NiMH/NiCd.

Voir plus
SKYRC-Chargeur-e680 - Manuel FR (2.33MB)

SKYRC-Chargeur-e680 - Manuel FR_en
