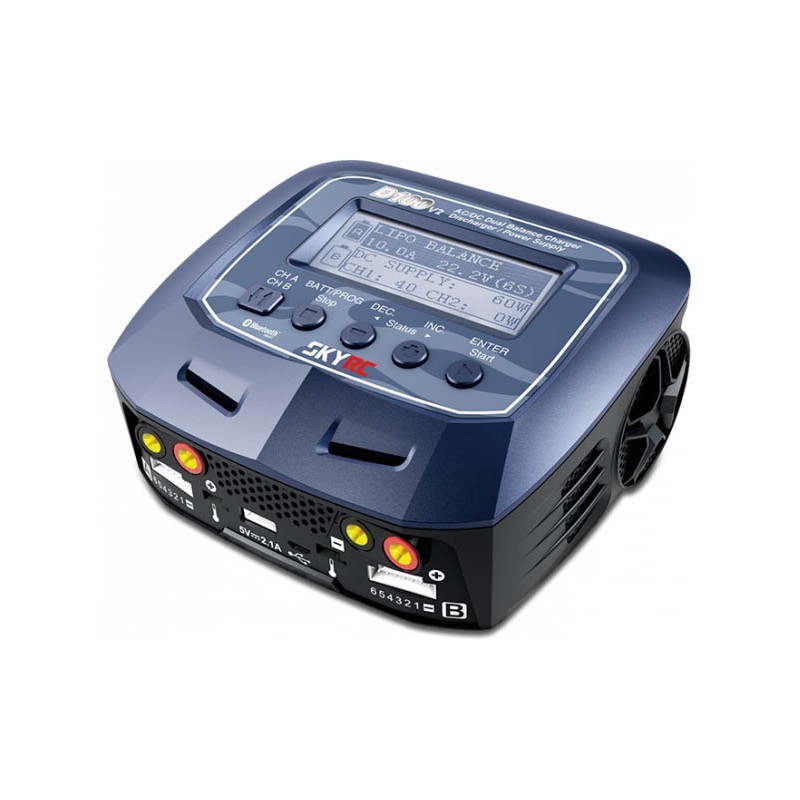

Duo D100 v2 AC/DC charger (AC max 100w total - DC 2x100w)

SkyRC

SkyRC- D100-V2

SkyRC Duo D100 v2 AC/DC charger, for 1-6S LiPo/LiFe/LiIon/LiHV, 1-15S NiMH/NiCd, or 2-20V Pb batteries.

Learn more

By buying this product you can collect up to 11 loyalty points. Your cart will total 11 loyalty points that can be converted into a voucher of 2,20 €.

Same day shipping

119,90 €

  • Degressive Shipping Costs

  • Same day shipping for orders placed before 3:30 pm (Monday to Friday)

More info

SkyRC D100 v2 is a twin-channel charger with two independent circuits which can charge batteries of varying chemistries (LiPo/LiHV/LiFe/Lilon/NiMH/NiCd/PB)simultaneously. Capable of operating as a power supply with the maximum output of 100W helps the hobbyists to power the DC equiments. With its unprecedented function of voice guide, even a freshman can use this charger without any hurdles. Additional feature including our "SCAN TO GO" either.

Voice Guide
Purposes to make the charger more user-friendly and customizable. A speaker supported English and Chinese separately have been included in the left side of the charger that can reduce the times for misoperation
Power Distribution
The charger supports power distribution between channel A / channel B and PSU under the total power of 100W in AC mode.
DC Power Supply
The ability of supplying 100W/13.8V DC power dramatically expands its usage scope, which is really an amazing partner for hobbyists to power the DC equipments.
Twin-channel Charger
SkyRC D100 v2 allows you to plug 2 batteries into one charger simultaneously, and it will intelligently and automatically charge 2 batteries at once.
Charge Master
The user can monitor pack voltage, cell voltage and other data during the charging, view charge data in realtime graphs, and can also control charging and update firmware from "Charge Master".

LiHV mode available
The additional LiHV mode is able to charge the new generation of LiPo batteries with an end of charge voltage of 4.35 V.
SkyCharger App
The Bluetooth 4.0 connectivity allows the user to remote control and monitor the D100 v2 comfortably through an app on a portable device such as smartphone, iPad, or iPhone. The iOS app can be downloaded from iTunes Store, the Android app from Google Play Store. Operation of the app is self-explanatory and the same on iOS and on Android. Explicit pairing is not required; after download and installation just activate Bluetooth on your mobile device and launch the app. D100 v2 and your device will establish Bluetooth connection automatically.
SCAN TO GO
A very unique feature of D100 v2 is SCAN TO GO (automatically charging system). As the range of battery types and capacity becomes more and more, each battery requires its own dedicated charging process. It is easy to set up the charger incorrectly for a specific type of battery, resulting damage the battery or even cause accident.
The revolutionary SCAN TO GO provides a solution to this problem by allowing the user to assign a QR Code which contains all the relevant data for the battery for charging or discharging. The user can create a unique QR Code by using “SkyCharger” apps. Print it and paste it on the battery.
Using your smart phone and launch “SkyCharger” app. Since all the essential information is stored in the QR Code. All you need to do is press the Scan button, and the charge or discharge process will start automatically.
Charge Master
The user can monitor pack voltage, cell voltage and other data during the charging, view charge data in realtime graphs, and can also control charging and update firmware from "Charge Master".
Key features
  • Voice guide
  • DC Power Supply
  • Power distribution management
  • Scan to Go
  • Lithium Battery balancer
  • Discharge feature
  • Program Data Store/Load
  • Battery Meter
  • Battery resistance meter
  • Terminal voltage control (TVC)
  • PC Control
  • Maximum safety

Specifications

AC Input Voltage100-240V
DC Input Voltage11-18V
Charge WattageAC 100W(Support Power Distribution)
DC 100Wx2
Discharge Wattage10Wx2
Charge Current(0.1A-10.0A) x2
Discharge Current(0.1A-2.0A) x2
DC Power Supply Output13.8V / Max. 100W
Current Drian for Balancing Port300mA/cell
Trickle Charging Current50mA-300mA & OFF
LiPo/LiFe/Lilon/LiHV Battery Cell Count1-6S
NiMH/NiCd Battery Cell Count1-15S
Pb Battery Voltage2-20V
Size :153 x 140 x 67 mm
Weight668 g

Composition Kit

  • SKYRC D100v2 Charger
  • XH Adaptor X 2
  • Charging Cable X 2
  • Banana connectors with XT60 connector Charging Cable X 2
  • Power Cord

Avis produits
  • Par B. Bernhard
  • the 13/06/2020
Marche bien
  • Par D. Charles
  • the 22/04/2020
Fait le boulot mais le Bluetooth ne fonctionne pas.
  • Par C. Pedro
  • the 07/02/2020
Perfetc!
  • Par M. Mathieu
  • the 14/11/2019
Parfait pour mon usage
  • Par C. Thierry
  • the 26/10/2019
Très bon chargeur
  • Par M. Matthieu
  • the 12/07/2019
Chargeur facil d’utilisation, connections Bluetooth rapide et viable.
  • Par G. Baptiste
  • the 16/03/2019
Super bien très bon matériel
  • Par L. Benoit
  • the 08/03/2019
J'aime bien l'application sur Android avec le bluetooth, plutôt sympa sinon le chargeur rien a redire pour le moment utilisé deux fois seulement.
  • Par A. Anonymous
  • the 29/05/2018
fonctionne nickel
  • Par A. Anonymous
  • the 27/04/2018
satisfait du produit
  • Par A. Anonymous
  • the 17/01/2018
Une vrai merveille ! Le coup de charger directement en lisant les QR code est excellent. Par contre l'application ne semble pas mémoriser le nombre de cycle de charge. Un détail au regard de la simplicité d'utilisation.
  • Par A. Anonymous
  • the 19/09/2017
L'investissement en vaut la peine, sans aucun doute !
  • Par A. Anonymous
  • the 27/08/2017
ne charge pas la batterie d'origine taranis .. dommage
